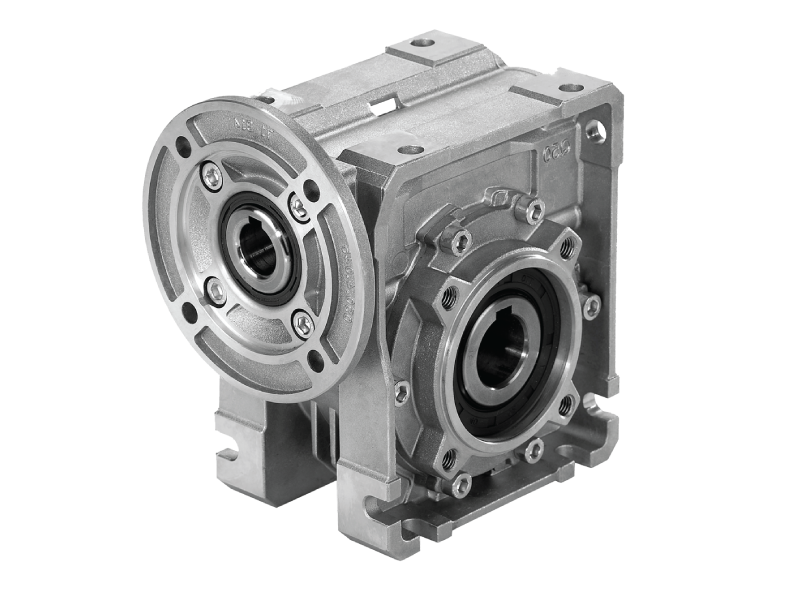

Find a productBison® IHP-Q Series Right Angle Gear Reducer
Aluminum Shell Worm Gear, 257 - 2921 in-lbs., 1/4 - 5 HP, 17.2 - 250 RPM
Standard Hollow Output Shaft Mounting
Reduces total drive envelope size, weight and cost. Single output shaft is available.
Oversized Bearings
Support positively-retained, high speed shaft for higher shock load capacity - ideal for frequent starting and reversing applications. Nitrile high temperature seals on each end.
Single Piece aluminum Alloy Housing
Is vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gears.
Single Piece Alloy Steel Input Shaft and Worm Shaft
High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused for noise reduction and enhanced efficiency.
Bronze Alloy Worm Gears
Is centrifugally cast onto an iron hub for maximum strength and superior life
Configure A Model Based on Your Specs
Use the 3D CAD Configurator below to select the specs needed for your application and generate a 3D CAD Model or download a product data sheet.
Standard Hollow Output Shaft Mounting
Reduces total drive envelope size, weight and cost. Single output shaft is available.
Oversized Bearings
Support positively-retained, high speed shaft for higher shock load capacity - ideal for frequent starting and reversing applications. Nitrile high temperature seals on each end.
Single Piece aluminum Alloy Housing
Is vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gears.
Single Piece Alloy Steel Input Shaft and Worm Shaft
High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused for noise reduction and enhanced efficiency.
Bronze Alloy Worm Gears
Is centrifugally cast onto an iron hub for maximum strength and superior life
Configure A Model Based on Your Specs
Use the 3D CAD Configurator below to select the specs needed for your application and generate a 3D CAD Model or download a product data sheet.
Features & Benefits
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
Energy Efficient
High helix angle worm is case-hardened and ground for noise reduction and enhanced efficiency.
High Torque Output
Perfect for larger format applications that require high levels of torque and quiet operation.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
Markets & Applications
Agricultural
Equipment
Equipment
Food & Beverage
Service
Service
Packaging
Equipment
Equipment
Energy
And So
Many More!
Many More!
Why Bison
Design Expertise, Customizable Solutions & Integration Support
Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
Engage with our engineers, locate an authorized distributor or connect with customer and technical support.
