Bison® SS30 Series Washdown Motors

1/2 - 2 HP · 230/460 Volts · 1720 - 1760 RPM Washdown Motors


Stainless steel Motors for food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns.

When food, beverage or pharmaceutical production plants are washed down, the motors - along with other parts - are often subjected to high pressure water jets (sometimes at high temperatures) or even more aggressive cleaning agents.

Bison SS30 stainless steel motors can withstand this operating condition, that on the contrary can cause damage to other kind of motor, or even contaminate the end product.


Unlike standard motors, the SS30 motors have no cooling fins, no paint to chip or flake and no surface that will rust. This means that waste products can be washed away easily leaving no residue and the motor can be used with confidence in food processing areas, even the rating plate is engraved on the outer NDE cover to reduce areas where bacteria can lurk where hygiene is essential.

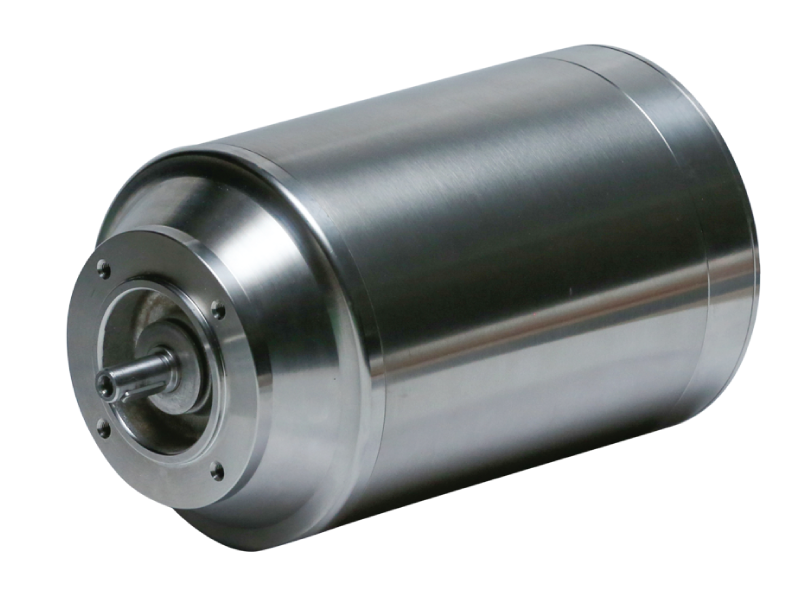

Bison SS30 Series Washdown Motor
Bison SS30 Series Washdown Motor

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
Compact Design Icon

Compact Design

Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
Speed (RPM)
Torque (in-lbs)
Volt Input HP
Motor Frame
P150-030-0004 Stainless Steel Washdown AC Motor
AC 1720
6
230/460 1/2
IEC 63 B14
P150-030-0014 Stainless Steel Washdown AC Motor AC 1720 9
230/460 1/4
IEC 63 B14
P150-030-0024 Stainless Steel Washdown AC Motor AC 1720 12
230/460 1/3
IEC 71 B14
P150-030-0034 Stainless Steel Washdown AC Motor AC 1720 18
230/460 1/2
IEC 71 B14
P150-030-0044 Stainless Steel Washdown AC Motor AC 1720 27
230/460 3/4
IEC 80 B14
P150-030-0054 Stainless Steel Washdown AC Motor AC 1720 49
230/460 1
IEC 80 B14
P150-030-0064 Stainless Steel Washdown AC Motor AC 1720 54
230/460 1 1/2
IEC 90 B14
P150-030-0074 Stainless Steel Washdown AC Motor AC 1720 72
230/460 2
IEC 90 B14
P150-030-1004 Stainless Steel Washdown AC Motor AC 1760 6
230/460 1/6
NEMA 56C
P150-030-2004 Stainless Steel Washdown AC Motor AC 1760 9
230/460 1/4
NEMA 56C
P150-030-3004 Stainless Steel Washdown AC Motor AC 1760 12
230/460 1/3
NEMA 56C
P150-030-4004 Stainless Steel Washdown AC Motor AC 1760 18
230/460 1/2
NEMA 56C
P150-030-5004 Stainless Steel Washdown AC Motor AC 1760 27
230/460 3/4
NEMA 56C
P150-030-6004 Stainless Steel Washdown AC Motor AC 1760 37
230/460 1
NEMA 56C
P150-030-7004 Stainless Steel Washdown AC Motor AC 1760 55
230/460 1 1/2
NEMA 56C
P150-030-8004 Stainless Steel Washdown AC Motor AC 1760 74
230/460 2
NEMA 56C


Markets & Applications

Agricultural Equipment
Agricultural
Equipment
food service application icon
Food & Beverage
Service
packaging application icon
Packaging
Equipment
Energy Market Icon
Energy
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.



bison contact form icon
Engage with our engineers, locate an authorized distributor or connect with customer and technical support.
