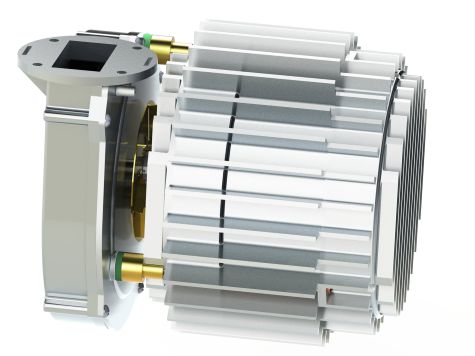

Nautilair® 7.6” IP65 Rated

Reach pressures up to 45" of H₂O and flow rates up to 225 CFM, delivering air power up to 0.5M BTUs per hour.  The blower allows manufacturers to add contaminant ingress protection without sacrificing output.
IP65 Nautiliar
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
IP65 Nautiliar

Features & Benefits

Benefit Card
Best Icon

Power Density

Industry-leading design enables the highest output from the smallest blower size.
Benefit Card
Long Life Icon

Long Life

Brushless design eliminates brush failure and extends life up to 25,000 hours – virtually maintenance-free.
Benefit Card
Variable Speed Icon

Variable Speed

Completely programable for various speed profiles and several different speed signals (0–10VDC, PWM, 4–20mA, and mechanical).
Benefit Card
Compact Design Icon

Compact Design

Lightweight, space-saving design facilitates easy installation of the blower into the boiler or other equipment.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • Design Options
  • Curves
  • Case Studies
Nautilair 7.6" IP65 Rated
Max Flow CFM (m3/hr)  225 (382)
Max Pressure In. H2O (mbar)
 45 (112)
Voltages 12VDC
24VDC
100-240VAC
120VAC
240VAC
Agency Certification  RoHS, REACH,
UL and CSA

Stages 1 or 2
Speed Regulation Open Loop or Closed Loop
Speed Control Mechanical POT adjustment
0-10 VDC
0-10VDC (Remote POT Option Card)
PWM
Remote Potentiometer

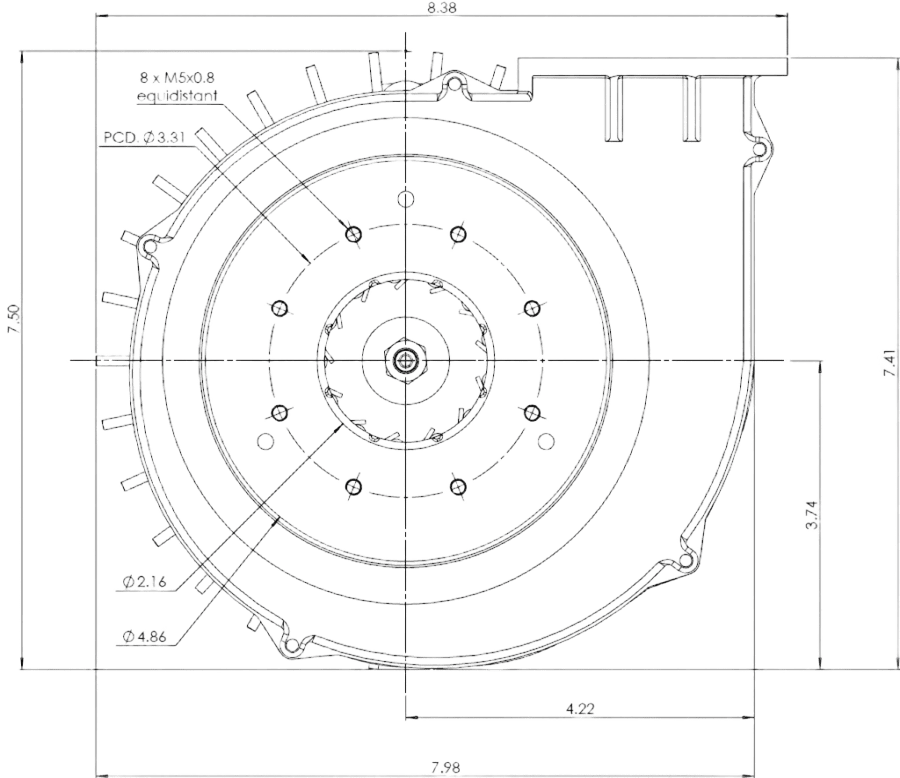

  Nautilair® 7.6” IP65 Rated

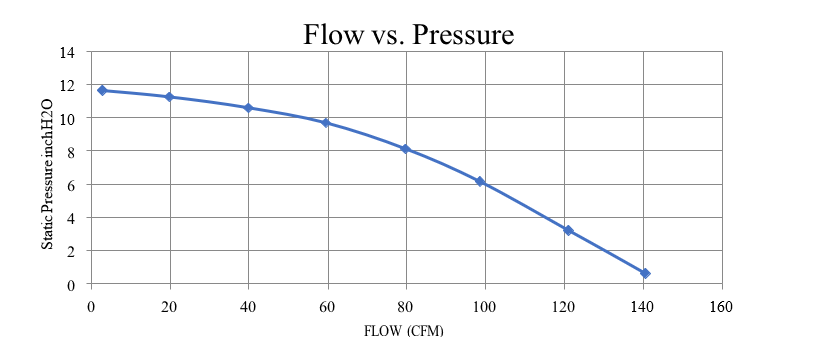

Flow vs Pressure

Markets & Applications

Agricultural Equipment
Agriculture
car automative
Automative
coating and paint
Coating & Paint
ceramic cup
Ceramic
Food Preparation Application Icon
Food & Beverage
Preparation
Textile- Shirt
Textile
