Find a productWindjammer® 3.0"- 5.1"
Brushless Blowers
Reach pressures up to 50" H2O with flow rates as high as 26 CFM. High performance, compact and low noise, these Windjammer Brushless Blowers are long-life solutions for many pressure and vacuum applications in commercial, medical and industrial markets.
Features & Benefits
Compact Design
Brushless DC motor drives coupled to high efficiency fan systems in compact, cost-effective packages.
Design Flexibility
Custom speed and acceleration profiles, over current safety limits and error logging provide design freedom and fuel innovation.
Long Life
Durable brushless construction withstands the wear and tear of constant use. Extends life up to 25,000 running hours.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
-

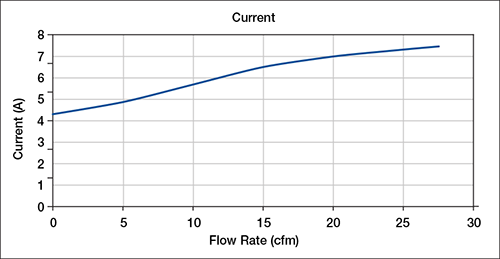

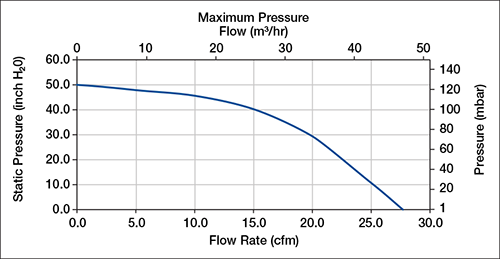

Curves
-
Options
-
Case Studies
- Integrated controller models for proven performance
- External controller models enables one set of controls
- Silicone coated PCB for added protection in high moisture environments
- Muffler options to help reduce noise levels at high pressures
- Customizable wiring connectors to minimize electrical interface demands
| Model Number | Frame Size | Fan Stages | AC/DC | Volt | Motor Type | Alt Parts |
|---|---|---|---|---|---|---|
| 071195000 | 3 | 1 | DC | 10.3 | Windjammer 3.0 - BLDC | N/A |
| 119343-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119349-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119349-01 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119349-02 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119349-03 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119349-51 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119350-00 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 119350-01 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 119350-51 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 119351-00 | 3 | 1 | DC | 10 | Windjammer 3.0 - BLDC | N/A |
| 119351-02 | 3 | 1 | DC | 10 | Windjammer 3.0 - BLDC | N/A |
| 119352-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 119354-00 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 119362-00 | 4 | 1 | DC | 12 | Windjammer 4.0 - BLDC | N/A |
| 119377-00 | 3.3 | 1 | DC | 7-10 | Windjammer 3.3 - BLDC | N/A |
| 119377-02 | 3.3 | 1 | DC | 8.5 | Windjammer 3.3 - BLDC | N/A |
| 119395-00 | 4.5 | 1 | DC | 24 | Windjammer 4.5 - BLDC | N/A |
| 119494-00 | 4.5 | 1 | DC | 12 | Windjammer 4.5 - BLDC | N/A |
| 119497-00 | 3.3 | 1 | DC | 12 | Windjammer 3.3 - BLDC | N/A |
| 119498-00 | 3.3 | 1 | DC | 24 | Windjammer 3.3 - BLDC | N/A |
| 119498-50 | 3.3 | 1 | DC | 24 | Windjammer 3.3 - BLDC | N/A |
| 119499-50 | 3.3 | 1 | DC | 24 | Windjammer 3.3 - BLDC | N/A |
| 150005-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150111-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150122-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150122-02 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150158-00 | 4.5 | 1 | DC | 12 | Windjammer 4.5 - BLDC | N/A |
| 150175-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150179-00 | 3 | 1 | DC | 10 | Windjammer 3.0 - BLDC | N/A |
| 150193-00 | 5.1 | 1 | DC | 24 | Windjammer 5.1 - BLDC | N/A |
| 150309-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150388-50 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150394-50 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150399-50 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150908-50 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150908-51 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150908-53 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150910-00 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150914-50 | 3 | 1 | DC | 24 | Windjammer 3.0 - BLDC | N/A |
| 150914-51 | 3 | 1 | DC | 14 | Windjammer 3.0 - BLDC | N/A |
| 150918-50 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150918-53 | 3 | 1 | DC | 12 | Windjammer 3.0 - BLDC | N/A |
| 150991-00 | 5.1 | 1 | DC | 24 | Windjammer 5.1 - BLDC | N/A |
| 150991-01 | 5.1 | 1 | DC | 24 | Windjammer 5.1 - BLDC | N/A |
| 150999-50 | 3 | 1 | DC | 0-28 | Windjammer 3.0 - BLDC | N/A |
| 151156-00 | 4.5 | 1 | DC | 24 | Windjammer 4.5 - BLDC | N/A |
| 151232-00 | 4.5 | 1 | DC | 0-14 | Windjammer 4.5 - BLDC | N/A |
| 151300-00 | 4.5 | 1 | DC | 24 | Windjammer 4.5 - BLDC | N/A |
| 151301-00 | 4.5 | 1 | DC | 24 | Windjammer 4.5 - BLDC | N/A |
| 151705-00 | 4.8 | 1 | DC | 24 | Windjammer 4.5 - BLDC | N/A |
Markets & Applications
Air Sampling
Equipment
Equipment
Business
Machines
Machines
Material Handling Equipment
Medical Air
Beds & Vests
Beds & Vests
Sterilization
Equipment
Equipment
And So
Many More!
Many More!
Why Bison
Design Expertise, Customizable Solutions & Integration Support
Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
Engage with our engineers, locate an authorized distributor or connect with customer and technical support.
