Nautilair® 12.3"
Combustion Blowers

Reach pressures up to 27" of H2O and flow rates up to 1,250 CFM. The blowers support air power up to 4.75M BTUs per hour. Standard output, high output and high energy versions are available and are customizable to your specifications.

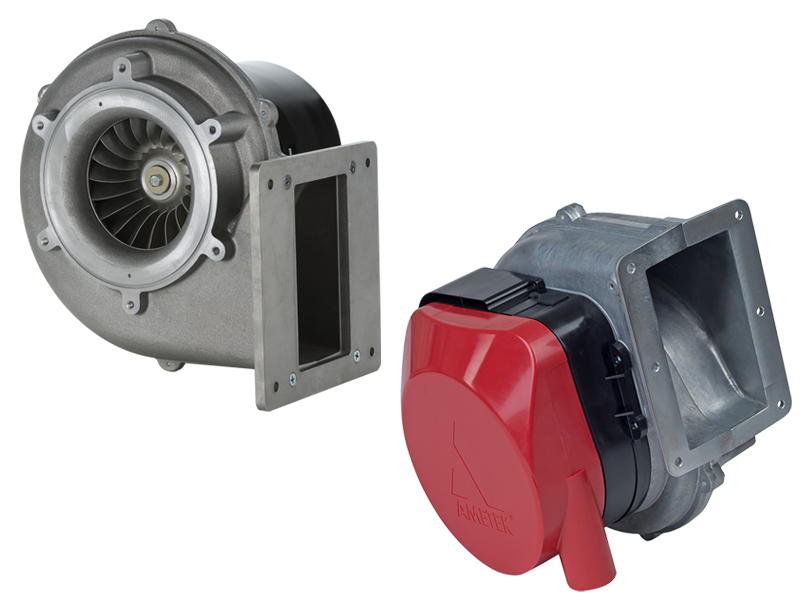

Nautilair 123 Combustion Blowers Family
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Nautilair 123 Combustion Blowers Family

Features & Benefits

Benefit Card
Best Icon

Power Density

Industry-leading design enables the highest output from the smallest blower size.
Benefit Card
Long Life Icon

Long Life

Brushless design eliminates brush failure and extends life up to 25,000 hours – virtually maintenance-free.
Benefit Card
Variable Speed Icon

Variable Speed

Completely programable for various speed profiles and several different speed signals (0–10VDC, PWM, 4–20mA, and mechanical).
Benefit Card
Compact Design Icon

Compact Design

Lightweight, space-saving design facilitates easy installation of the blower into the boiler or other equipment.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • Design Options
  • High Energy
  • Selector Guide
  • Case Studies
Nautilair 12.3"
Max Flow CFM (m3/hr)  1250 (2124)
Max Pressure In. H2O (mbar)
 27 (67)
Voltages 120 VAC
240 VAC
220VAC
240 VAC; Three-Phase
380-480 VAC; Three-Phase
380-575 VAC; Three-Phase
208 VAC; Three-Phase
Agency Certification  RoHS, REACH,
UL and CSA

Stages 1
Speed Regulation Open Loop or Closed Loop
Speed Control Mechanical - POT adjustment
0-10 VDC
PWM
4 to 20 mA
Remote Potentiometer
N12.3 Line Drawing

123 Nautilair Combustion Blower High Energy 275H RevDeveloped to address customer needs for greater power from the same blower size, the Nautilair 12.3" High Energy Blower builds upon the foundation of its predecessor, the original Nautilair 12.3” blower, with targeted enhancements.

  • Replaced the Ferrite magnet with a Neodymium magnet
  • Upgraded the 20-blade plastic cooling fan with an eight-blade aluminum fan
  • Offers an optional impact-resistant plastic enclosure with exhaust tube

These new design features minimize demagnetization risks from external factors like magnetic fields or high temperatures. The backward curved cooling fan with significantly less blades reduces noise and improves motor efficiency, without compromising motor cooling. The option to utilize an exhaust tube can prevent cooling air recirculation which allows for lowering motor operating temperatures ensuring long motor life.

Model Number Frame Size Fan Stages AC/DC Volt Motor Type Alt Parts
150530-50 12.3 1 AC 120 Nautilair - BLDC N/A
150530-56 12.3 1 AC 120 Nautilair - BLDC N/A
150531-50 12.3 1 AC 120 Nautilair - BLDC N/A
150531-51 12.3 1 AC 120 Nautilair - BLDC N/A
150532-01 12.3 1 AC 120 Nautilair - BLDC N/A
150532-08 12.3 1 AC 120 Nautilair - BLDC N/A
150532-50 12.3 1 AC 120 Nautilair - BLDC N/A
150532-51 12.3 1 AC 120 Nautilair - BLDC N/A
150532-52 12.3 1 AC 120 Nautilair - BLDC N/A
150532-54 12.3 1 AC 120 Nautilair - BLDC N/A
150532-55 12.3 1 AC 120 Nautilair - BLDC N/A
150532-56 12.3 1 AC 120 Nautilair - BLDC N/A
150532-57 12.3 1 AC 120 Nautilair - BLDC N/A
150532-58 12.3 1 AC 120 Nautilair - BLDC N/A
150533-50 12.3 1 AC 120 Nautilair - BLDC N/A
150534-50 12.3 1 AC 120 Nautilair - BLDC N/A
150540-50 12.3 1 AC 240 Nautilair - BLDC N/A
150541-50 12.3 1 AC 240 Nautilair - BLDC N/A
150542-50 12.3 1 AC 240 Nautilair - BLDC N/A
150542-51 12.3 1 AC 240 Nautilair - BLDC N/A
150542-52 12.3 1 AC 240 Nautilair - BLDC N/A
150542-53 12.3 1 AC 240 Nautilair - BLDC N/A
150542-54 12.3 1 AC 240 Nautilair - BLDC N/A
150542-56 12.3 1 AC 240 Nautilair - BLDC N/A
150542-57 12.3 1 AC 240 Nautilair - BLDC N/A
150542-59 12.3 1 AC 240 Nautilair - BLDC N/A
150543-00 12.3 1 AC 240 Nautilair - BLDC N/A
150544-00 12.3 1 AC 240 Nautilair - BLDC N/A
150632-00P 12.3 1 AC 120 Nautilair - BLDC N/A
150632-01P 12.3 1 AC 120 Nautilair - BLDC N/A
150632-16P 12.3 1 AC 120 Nautilair - BLDC N/A
150642-00 12.3 1 AC 240 Nautilair - BLDC N/A
150642-00P 12.3 1 AC 240 Nautilair - BLDC N/A
150642-01 12.3 1 AC 240 Nautilair - BLDC N/A
150642-01P 12.3 1 AC 240 Nautilair - BLDC N/A
150642-02 12.3 1 AC 240 Nautilair - BLDC N/A
150642-02P 12.3 1 AC 240 Nautilair - BLDC N/A
150642-06 12.3 1 AC 240 Nautilair - BLDC N/A
150642-06P 12.3 1 AC 240 Nautilair - BLDC N/A
150644-02P 12.3 1 AC 240 Nautilair - BLDC N/A
150646-06 12.3 1 AC 240 Nautilair - BLDC N/A
151130-00 12.3 1 AC 240 Nautilair - BLDC N/A
151131-50 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-50 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-52 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-53 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-56 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-57 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151132-58 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151133-50 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151262-00 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-01 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-06 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-30 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-30P 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-40 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151262-40P 12.3 1 AC 3Φ 380-480 Nautilair - BLDC N/A
151401-00 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151401-00P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151401-01 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151401-01P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151401-02P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151402-00 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151402-00P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151402-01 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151402-01P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151402-06P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151403-02P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-00 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-00P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-01 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-01P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-06 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-06P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-07 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151406-07P 12.3 1 AC 3Φ 380-575 Nautilair - BLDC N/A
151631-00 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151631-00P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151631-01 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151631-01P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151631-02 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151631-02P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-00 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-00P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-01 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-01P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-06 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
151632-06P 12.3 1 AC 3Φ 240 Nautilair - BLDC N/A
