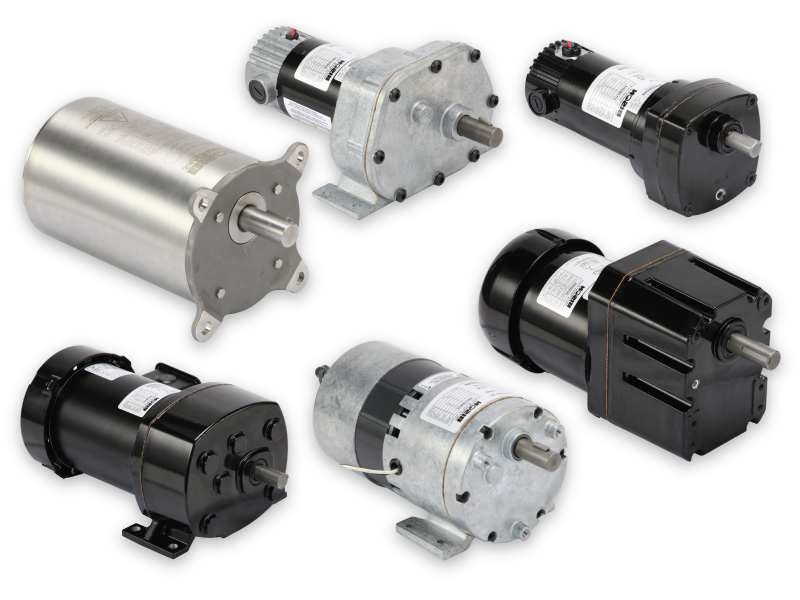

Bison Parallel Shaft Gearmotors

Inline Parallel Shaft Gearmotors

Bison® offers more than 300 standard inline parallel shaft gearmotors in 17 different model configurations. Whether an application requires a compact design, IP69K washdown or high torque,  Bison® has a solution.

Inline Parallel Shaft Gearmotor Specification Ranges
Speed: 1 - 360 RPM
Torque: 10 - 1112 in-lbs
Horsepower: 1/80 - 1/2 HP
Input Power: AC & DC available
Voltages: 12, 90, 115, 230, 460

Download Bison Gear Motors Full Product Line Overview Brochure


Products

Bison 010 Series Parallel Shaft Gearmotors

Bison® 010 Series Inline Parallel Shaft Gearmotors

6-40 RPM · 75-600 in-lbs · 1/15 - 1/10 HP · AC & DC options available

Motor Specifications
Enclosure: TENV(DC), TEFC(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Phenolic High Speed and Hardened Steel
Duty Rating: Continuous

020 Series Bison Gearmotor

Bison® 020 Series Inline Parallel Shaft Gearmotors

2-60 RPM · 42-113 in-lbs · 1/20 - 1/10 HP · AC option available

Motor Specifications
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Shaded Pole

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Plastic High Speed and Hardened Steel
Duty Rating: Continuous

030 Series Bison Gearmotor

Bison® 030 Series Inline Parallel Shaft Gearmotors

6-120 RPM · 100-600 in-lbs · 1/20 - 1/4 HP · AC option available

Motor Specifications
Enclosure: ODP
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Split Phase

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Phenolic High Speed and Hardened Steel
Duty Rating: Continuous

040 Series Bison Gearmotor

Bison® 040 Series Inline Parallel Shaft Gearmotors

31-92 RPM · 287-800 in-lbs · 1/2 HP · AC option available

Motor Specifications
Enclosure: ODP
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Split Phase

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Plain
Bearings: Ball
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Phenolic High Speed and Steel
Duty Rating: Continuous

050 Series Bison Gearmotor

Bison® 050 Series Inline Parallel Shaft Gearmotors

4-181 RPM · 12-50 in-lbs · 1/30 - 1/20 HP · AC & DC options available

Motor Specifications
Enclosure: TENV
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor and Junction Box Included (AC)

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Powdered Metal
Duty Rating: Continuous

055 Series Bison Gearmotor

Bison® 055 Series Inline Parallel Shaft Gearmotors

15-164 RPM · 12-67 in-lbs · 1/25 HP · AC option available

Motor Specifications
Enclosure: TENV
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Zytel High Speed and Steel
Duty Rating: Continuous

100 Series Bison Gearmotor

Bison® 100 Series Inline Parallel Shaft Gearmotors

1-359 RPM · 8-100 in-lbs · 1/80 - 1/20 HP · AC & DC options available

Motor Specifications
Enclosure: TENV(DC), Open 1/80 & 1/10 HP, TENV 1/20 HP, TEFC 1/12 HP(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle Output
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: 1st Stage Helical, All Other Stages Powdered Metal or Steel
Duty Rating: Continuous

175 Series Bison Gearmotor

Bison® 175 Series Inline Parallel Shaft Gearmotors

1-360 RPM · 17-170 in-lbs · 1/20 - 1/10 HP · AC & DC options available

Motor Specifications
Enclosure: TENV(DC), Open 1/10 HP, TENV 1/20 HP, TEFC 1/12 HP(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Magnet (DC), Permanent Split Capacitor and three phase - Capacitor Included on PSC (AC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle Output
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: 1st Stage Helical, All Other Stages Heat Treated steel or Powdered Metal
Duty Rating: Continuous

200 Series Bison Gearmotor

Bison® 200 Series Inline Parallel Shaft Gearmotors

8-350 RPM · 16-350 in-lbs · 1/15 - 1/4 HP · AC option available

Motor Specifications
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor and three phase - Capacitor Included on PSC

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle With Thrust Ball
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous

Bison 261 Series Sanimotor Gearmotor

Bison® 261 Series Sanimotor Inline Parallel Shaft Washdown Gearmotors

8-350 RPM · 16-500 in-lbs · 1/7 and 1/8 HP · AC Inverter Duty Motor
  • IP69K washdown rated
  • Motor and gear train enclosed in one sealed stainless steel shell.
  • Two part, spring loaded stainless steel and EPDM triple lip shaft seal.
  • 304 stainless steel cover
  • EPDM O-rings for a tight seal
  • 316 stainless steel, o-ring sealed hex bolts hold cover in place.
  • Stainless steel output shaft with captured keyway.
  • Modular gear train incorporates sealed ball bearings and is capable of high load conditions.
  • Food grade H1 grease is used for maintenance-free lifetime lubrication.
  • Laser marked motor nameplate
  • Removable IP69K ABS cordset connects to stainless steel multi-pin connector.
  • 230 V, 60/50 Hz, inverter duty motor.
Bison 300 Series Gearmotor

Bison® 300 Series Inline Parallel Shaft Gearmotors

6-360 RPM · 19-350 in-lbs · 1/20 - 1/4 HP · DC option available

Motor Specifications
Enclosure: TENV
Insulation: Class F
Bearings: Ball
Rotation: Reversible
Motor Type: PMDC

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle With Thrust Ball
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9.
Duty Rating: Continuous

Bison 400 Series Gearmotor

Bison®400 Series Inline Parallel Shaft Gearmotors

5-291 RPM · 70-1087 in-lbs · 1/4 - 1/2 HP · AC option available

Motor Specifications
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Split Phase and Three Phase

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle and ball on output shaft
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur
Duty Rating: Continuous

Bison 483 Series Gearmotor

Bison® 483 Series Inline Parallel Shaft Gearmotors

9-148 RPM · 101-1112 in-lbs · 1/4 - 1/2 HP · DC option available

Motor Specifications
Enclosure: 1/4 HP TENV, 1/2 HP TEFC
Insulation: Class B
Bearings: Ball
Rotation: Reversible
Motor Type: PMDC

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle and Thrust Ball, Ball Bearing Outboard
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical, Balance Spur Steel.
Duty Rating: Continuous

Bison 650 Series Gearmotor

Bison® 650 Series Inline Parallel Shaft Gearmotors

1-119 RPM · 240-710 in-lbs · 1/20 - 1/2 HP · AC & DC options available

Motor Specifications
Enclosure: TEFC(DC), TEFC & TENV Available(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle and Thrust BAll
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: AGMA Class 9 Heat Treated Steel, 1st-Stage Helical, Balance Spur
Duty Rating: Continuous
