Nautilair® 7.6"
Combustion Blowers

Reach pressures up to 45" of H2O and flow rates up to 225 CFM. These blowers support air power up to 0.5M BTUs per hour. Standard and high output versions are available with customization options to fit your specifications.

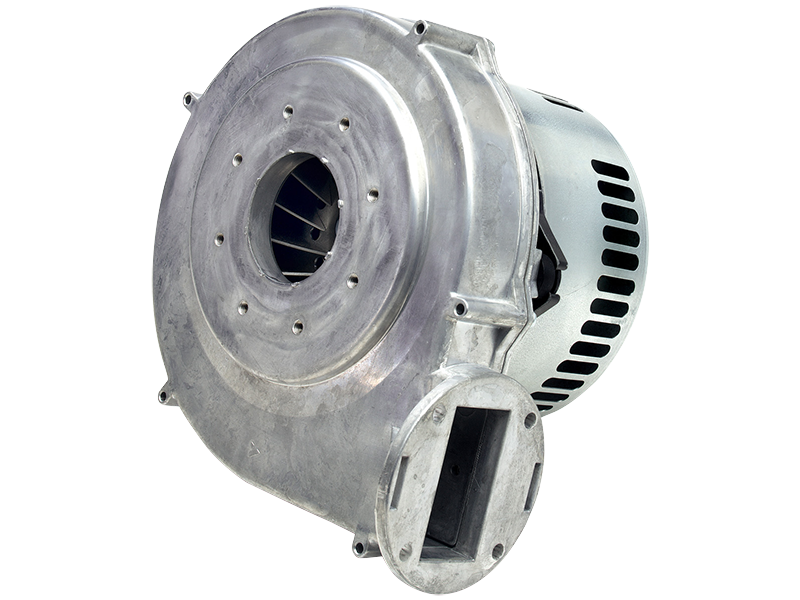

Nautilair Combustion Blower- 7-6
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Nautilair Combustion Blower- 7-6

Features & Benefits

Benefit Card
Best Icon

Power Density

Industry-leading design enables the highest output from the smallest blower size.
Benefit Card
Long Life Icon

Long Life

Brushless design eliminates brush failure and extends life up to 25,000 hours – virtually maintenance-free.
Benefit Card
Variable Speed Icon

Variable Speed

Completely programable for various speed profiles and several different speed signals (0–10VDC, PWM, 4–20mA, and mechanical).
Benefit Card
Compact Design Icon

Compact Design

Lightweight, space-saving design facilitates easy installation of the blower into the boiler or other equipment.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • Design Options
  • Selector Guide
  • Case Studies
Nautilair 7.6"
Max Flow CFM (m3/hr)  225 (382)
Max Pressure In. H2O (mbar)
 45 (112)
Voltages 12VDC
24VDC
100-240VAC
120VAC
240VAC
Agency Certification  RoHS, REACH,
UL and CSA

Stages 1 or 2
Speed Regulation Open Loop or Closed Loop
Speed Control Mechanical POT adjustment
0-10 VDC
0-10VDC (Remote POT Option Card)
PWM
Remote Potentiometer
N7.6 Line drawing
Model Number Frame Size Fan Stages AC/DC Volt Motor Type Alt Parts
150130-00 7.6 1 AC 120 Nautilair - BLDC N/A
150130-01 7.6 1 AC 120 Nautilair - BLDC N/A
150130-06 7.6 1 AC 120 Nautilair - BLDC N/A
150130-07 7.6 1 AC 120 Nautilair - BLDC N/A
150130-08 7.6 1 AC 120 Nautilair - BLDC N/A
150131-00 7.6 1 AC 120 Nautilair - BLDC N/A
150132-00 7.6 1 AC 120 Nautilair - BLDC N/A
150132-01 7.6 1 AC 120 Nautilair - BLDC N/A
150133-00 7.6 1 AC 120 Nautilair - BLDC N/A
150133-06 7.6 1 AC 120 Nautilair - BLDC N/A
150134-00 7.6 1 AC 120 Nautilair - BLDC N/A
150134-01 7.6 1 AC 120 Nautilair - BLDC N/A
150134-06 7.6 1 AC 120 Nautilair - BLDC N/A
150134-07 7.6 1 AC 120 Nautilair - BLDC N/A
150134-61 7.6 1 AC 120 Nautilair - BLDC N/A
150135-00 7.6 1 AC 120 Nautilair - BLDC N/A
150135-06 7.6 1 AC 120 Nautilair - BLDC N/A
150135-55 7.6 1 AC 120 Nautilair - BLDC N/A
150136-50 7.6 1 AC 100 Nautilair - BLDC N/A
150137-01 7.6 1 AC 120 Nautilair - BLDC N/A
150140-00 7.6 1 AC 240 Nautilair - BLDC N/A
150141-00 7.6 1 AC 240 Nautilair - BLDC N/A
150142-00 7.6 1 AC 240 Nautilair - BLDC N/A
150143-00 7.6 1 AC 240 Nautilair - BLDC N/A
150143-01 7.6 1 AC 240 Nautilair - BLDC N/A
150143-02 7.6 1 AC 240 Nautilair - BLDC N/A
150143-06 7.6 1 AC 240 Nautilair - BLDC N/A
150143-07 7.6 1 AC 240 Nautilair - BLDC N/A
150143-08 7.6 1 AC 240 Nautilair - BLDC N/A
150143-50 7.6 1 AC 240 Nautilair - BLDC N/A
150143-60 7.6 1 AC 240 Nautilair - BLDC N/A
150143-61 7.6 1 AC 240 Nautilair - BLDC N/A
150144-06 7.6 1 AC 240 Nautilair - BLDC N/A
150144-07 7.6 1 AC 240 Nautilair - BLDC N/A
150144-61 7.6 1 AC 240 Nautilair - BLDC N/A
150145-20 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-50 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-51 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-52 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-53 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-54 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-55 7.6 1 AC 120 Nautilair - BLDC N/A
150145-56 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-58 7.6 1 AC 240 Nautilair - BLDC N/A
150145-59 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-60 7.6 1 AC 100-240 Nautilair - BLDC N/A
150145-70 7.6 1 AC 100-240 Nautilair - BLDC N/A
150147-50 7.6 1 AC 100-240 Nautilair - BLDC N/A
150148-01 7.6 1 AC 240 Nautilair - BLDC N/A
150148-03 7.6 1 AC 240 Nautilair - BLDC N/A
150149-01 7.6 1 AC 100-240 Nautilair - BLDC N/A
150184-50 7.6 1 DC 24 Nautilair - BLDC N/A
150185-50 7.6 1 DC 24 Nautilair - BLDC N/A
150186-50 7.6 1 DC 12 Nautilair - BLDC N/A
150187-01 7.6 1 DC 12 Nautilair - BLDC N/A
150264-00 7.6 1 AC 120 Nautilair - BLDC N/A
150265-00 7.6 1 AC 120 Nautilair - BLDC N/A
150500-00 7.6 1 AC 120 Nautilair - BLDC N/A
150501-00 7.6 1 AC 120 Nautilair - BLDC N/A
150502-00 7.6 1 AC 120 Nautilair - BLDC N/A
150503-00 7.6 1 AC 120 Nautilair - BLDC N/A
150503-02 7.6 1 AC 120 Nautilair - BLDC N/A
150504-06 7.6 1 AC 120 Nautilair - BLDC N/A
150505-00 7.6 1 AC 120 Nautilair - BLDC N/A
150505-01 7.6 1 AC 120 Nautilair - BLDC N/A
150521-00 7.6 1 AC 240 Nautilair - BLDC N/A
150524-00 7.6 1 AC 240 Nautilair - BLDC N/A
150524-06 7.6 1 AC 240 Nautilair - BLDC N/A
150524-61 7.6 1 AC 240 Nautilair - BLDC N/A
150560-01 7.6 1 AC 120 Nautilair - BLDC N/A
150560-02 7.6 1 AC 120 Nautilair - BLDC N/A
150560-06 7.6 1 AC 120 Nautilair - BLDC N/A
150560-07 7.6 1 AC 120 Nautilair - BLDC N/A
150561-01 7.6 1 AC 120 Nautilair - BLDC N/A
150562-00 7.6 1 AC 120 Nautilair - BLDC N/A
150562-06 7.6 1 AC 120 Nautilair - BLDC N/A
150563-00 7.6 1 AC 120 Nautilair - BLDC N/A
150563-01 7.6 1 AC 120 Nautilair - BLDC N/A
150563-02 7.6 1 AC 120 Nautilair - BLDC N/A
150563-03 7.6 1 AC 120 Nautilair - BLDC N/A
150563-04 7.6 1 AC 120 Nautilair - BLDC N/A
150563-05 7.6 1 AC 120 Nautilair - BLDC N/A
150563-08 7.6 1 AC 120 Nautilair - BLDC N/A
150563-09 7.6 1 AC 120 Nautilair - BLDC N/A
150563-19 7.6 1 AC 120 Nautilair - BLDC N/A
150564-00 7.6 1 AC 120 Nautilair - BLDC N/A
150564-01 7.6 1 AC 120 Nautilair - BLDC N/A
150565-06 7.6 1 AC 120 Nautilair - BLDC N/A
150580-00 7.6 1 AC 240 Nautilair - BLDC N/A
150580-01 7.6 1 AC 240 Nautilair - BLDC N/A
150581-00 7.6 1 AC 240 Nautilair - BLDC N/A
150581-06 7.6 1 AC 240 Nautilair - BLDC N/A
150583-00 7.6 1 AC 240 Nautilair - BLDC N/A
150583-01 7.6 1 AC 240 Nautilair - BLDC N/A
150583-06 7.6 1 AC 240 Nautilair - BLDC N/A
150583-70 7.6 1 AC 240 Nautilair - BLDC N/A
150584-00 7.6 1 AC 240 Nautilair - BLDC N/A
150584-06 7.6 1 AC 240 Nautilair - BLDC N/A
150930-01 7.6 1 AC 120 Nautilair - BLDC N/A
150930-02 7.6 1 AC 120 Nautilair - BLDC N/A
150930-03 7.6 1 AC 120 Nautilair - BLDC N/A
150930-04 7.6 1 AC 120 Nautilair - BLDC N/A
150930-11 7.6 1 AC 120 Nautilair - BLDC N/A
150934-01 7.6 1 AC 120 Nautilair - BLDC N/A
150935-00 7.6 1 AC 120 Nautilair - BLDC N/A
150937-00 7.6 1 AC 120 Nautilair - BLDC N/A
150940-01 7.6 1 AC 240 Nautilair - BLDC N/A
150940-56 7.6 1 AC 240 Nautilair - BLDC N/A
150945-00 7.6 1 AC 240 Nautilair - BLDC N/A
151645-01 7.6 1 AC 240 Nautilair - BLDC N/A

Markets & Applications

Boiler Room Icon
Boiler & Hot Water Heater Blowers
Cool High-Temp Applications Blower Icons
Cooling High-Temp Applications Blowers
Food Service Equipment
Food Service Equipment Blowers
Fume Evacuation Icon
Fume Evacuation System Blowers
Radon Mitigation Icon
Radon Mitigation System Blowers
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
