Windjammer® 5.7" Pro
Brushless Blowers

The most powerful blowers for high-flow applications delivering unmatched performance, surpassing competitive models. Windjammer 5.7” Pro Brushless Blowers empower engineers to apply multiple speed profiles as well as achieve the same air performance whether operating at 120 VAC or 240 VAC.

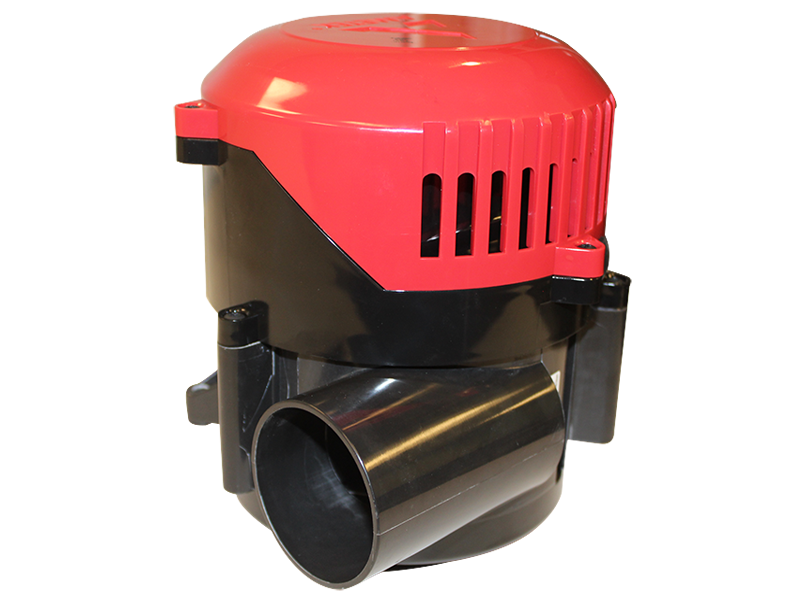

Windjammer 5.7 Pro Brushless Blowers
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Windjammer 5.7 Pro Brushless Blowers

Features & Benefits

Benefit Card
Low Noise - ACUSTEK

Reduced Noise

Uses Bison’s ACUSTEK principles and an upgraded motor enclosure, making the blower the industry's quietest high-flow option.
Benefit Card
Long Life Icon

Long Life

Runs cooler, extending brushless motor life up to 25,000 hours. Redesigned for bearing and electronic module longevity.
Benefit Card
And So Much More Icon

Design Flexibility

Custom speed and acceleration profiles, over current safety limits and error logging provide design freedom and fuel innovation.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • Curve
  • Options
  • Case Studies

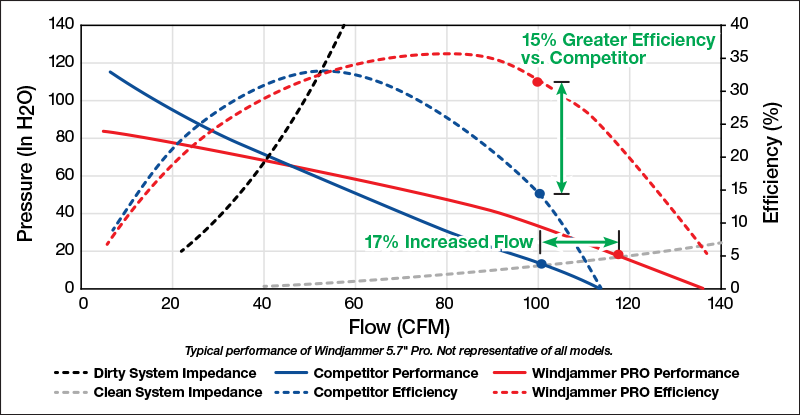

Windjammer 5.7 Pro Curve

ENVIRONMENTAL PROTECTION OPTIONS

  • PCB Coating: (std) Urethane Base | Silicone Base
  • Hardware: (std) Steel | Stainless Steel


CONTROL OPTIONS

  • Speed Control: (std) Closed Loop |Open Loop
  • Speed Command: (std) 0-10 VDC | Mechanical | 4-20mA |PWM | Remote Potentiometer
  • Loss of Speed Command Signal: (std) Pull Down | Pull Up


MECHANICAL OPTIONS

  • Working Intake: (std) Inlet Tube | Bell Mouth
  • Motor Cooling Inlet and Exhaust: (std) Vent | Tube
  • Mounting: (std) 5/16” Thru | ¼-20 Tapped | M6 x 1 Tapped
Model Number Frame Size Fan Stages AC/DC Volt Motor Type Alt Parts
WP057BH2-0N18A-0001 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0003 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0004 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0005 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0006 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0007 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0010 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0015 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-0N18A-0017 5.7 2 AC 120 / 240 Windjammer - BLDC N/A
WP057BH2-2N21A-0004 5.7 2 AC 240 Windjammer - BLDC N/A
WP057BH2-2N21A-0009 5.7 2 AC 240 Windjammer - BLDC N/A
WP057BH3-0N21A-P001 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0002 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0004 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0008 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0012 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0013 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0014 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0016 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BH3-0N22A-0018 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057BS4-0N22A-0004 5.7 4 AC 120 / 240 Windjammer - BLDC N/A
WP057BU1-0N18A-0004 5.7 1 AC 120 / 240 Windjammer - BLDC N/A
WP057BU1-0N18A-0009 5.7 1 AC 120 / 240 Windjammer - BLDC N/A
WP057BU1-2N21A-0004 5.7 1 AC 240 Windjammer - BLDC N/A
WP057BU1-2N21A-0009 5.7 1 AC 240 Windjammer - BLDC N/A
WP057PH3-0N22A-0012 5.7 3 AC 120 / 240 Windjammer - BLDC N/A
WP057PH3-0N22A-S001 5.7 3 AC 120 / 240 Windjammer - BLDC N/A

Markets & Applications

Providing High Performance Pressure and Vacuum For Equipment and Devices Including…

Air Sampling Equipment
Air Sampling
Equipment
Cool High-Temp Applications Blower Icons
Business
Machines
Material Handling Icon
Material Handling Equipment
Medical Air Beds Icon
Medical Air
Beds & Vests
Sterilization Equipment
Sterilization
Equipment
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
