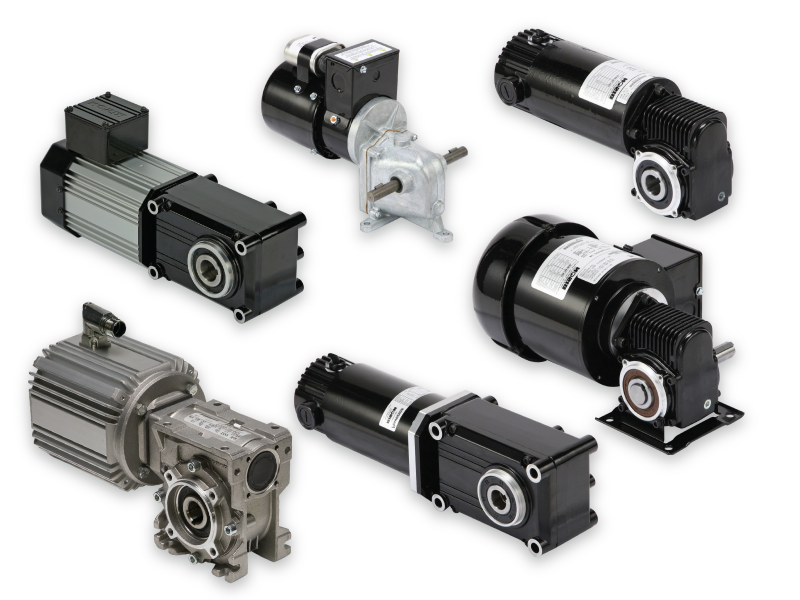

Bison Right Angle Gearmotors

Right Angle Gearmotors

Bison® offers more than 300 standard right angle gearmotors in both worm gear and hypoid gear options. Whether an application requires a compact design, high efficiency or high torque,  Bison® has a solution.

Right Angle Gearmotor Specification Ranges

Speed: 2 - 360 RPM
Torque: 34 - 1090 in-lbs
Horsepower: 1/20 - 1/2 HP
Input Power: AC & DC available
Voltages: 12, 90, 115, 230, 460

Download Bison Gear Motors Full Product Line Overview Brochure


Products

Bison 712 Series Gearmotors

Bison® 712 Series Powerstar Right Angle Gearmotors

7-194 RPM · 10-240 in-lbs · 1/30 - 1/20 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque
Bison 720 Series Gearmotors

Bison® 720 Series Powerstar Right Angle Gearmotors

8-178 RPM · 35-580 in-lbs · 1/17 - 1/8 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque
Bison 725 Series Gearmotors

Bison® 725 Series Powerstar Right Angle Gearmotors

7-180 RPM · 55-900 in-lbs · 1/8 - 1/5 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque
Bison 730 Series Gearmotors

Bison® 730 Series Powerstar Right Angle Gearmotors

7-198 RPM · 79-1730 in-lbs · 1/4 - 1/2 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque
Bison 746 Series Gearmotors

Bison® 746 Series Right Angle Gearmotors

27-180 RPM · 15-75 in-lbs · 1/12 - 1/15 HP · AC and DC options available

Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Ball and Needle
Lubrication: Lifetime Oil Bath Sealed and O-Ringed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel Worm, Bronze Gear
Duty Rating: Continuous

Bison 750 Series Gearmotors

Bison® 750 Series Right Angle Gearmotors

30-360 RPM · 14-130 in-lbs · 1/8 - 1/4 HP · AC and DC options available

Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Ball and Needle
Lubrication: Lifetime Oil Bath Sealed and O-Ringed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel Worm,  Cast Bronze Gear
Duty Rating: Continuous

060 Series Bison Gearmotor

Bison® 060 Series Right Angle Gearmotors

2-90 RPM · 34-250 in-lbs · 1/20 - 1/10 HP · AC and DC options available

Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Worm: Hardened Steel, Output Gear: Cast Iron
Duty Rating: Continuous
