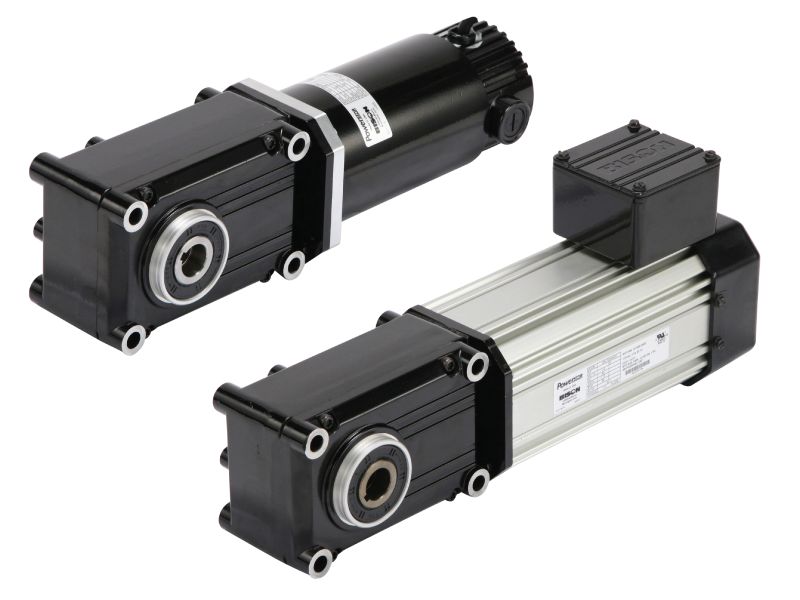

Bison® 720 Series Powerstar Right Angle Gearmotors

8-178 RPM · 35-580 in-lbs · 1/17 - 1/8 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque

Bison 720 Series Gearmotors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Bison 720 Series Gearmotors

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
High Efficiency Icon

Energy Efficient

Advanced hypoid gearing provides improved energy efficiency along with ground gearing for whisper quiet operation and low backlash precision.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs.)
 Gear Ratio :1
 Volt Input HP
 Replacement Brushes
026-720A0010 Right Angle AC Gearmotor
 AC 168
 35
 10
 115
 1/8 N/A
026-720A0015 Right Angle AC Gearmotor AC 112
 55
 15
 115 1/8 N/A
026-720A0020 Right Angle AC Gearmotor AC 84
 73
 20
 115 1/8 N/A
026-720A0030 Right Angle AC Gearmotor AC 56
 105
 30
 115 1/8 N/A
026-720A0040 Right Angle AC Gearmotor AC 42
 145
 40
 115 1/8 N/A
026-720A0050 Right Angle AC Gearmotor AC 34
 185
 50
 115 1/8 N/A
026-720A0060 Right Angle AC Gearmotor AC 28
 220
 60 115 1/8 N/A
026-720A0080 Right Angle AC Gearmotor AC 21
 295
 80
 115 1/8 N/A
026-720A0100 Right Angle AC Gearmotor AC 17
 365
 100
 115 1/8 N/A
026-720A0120 Right Angle AC Gearmotor AC 14
 440
 120
 115 1/8 N/A
026-720A0150 Right Angle AC Gearmotor AC 11
 295
 150
 115 1/15 N/A
026-720A0180 Right Angle AC Gearmotor AC 9
 355
 180
 115 1/15 N/A
026-720A0240 Right Angle AC Gearmotor AC 7
 470
 240
 115 1/15 N/A
026-720E0010 Right Angle AC Gearmotor
 AC 165/135
 37/45
 10
 115/230
 1/8 N/A
026-720E0015 Right Angle AC Gearmotor AC 110/90
 55/67
 15
 115/230 1/8 N/A
026-720E0020 Right Angle AC Gearmotor AC 83/68
 74/89
 20
 115/230 1/8 N/A
026-720E0030 Right Angle AC Gearmotor AC 55 /45
 111/164
 30
 115/230 1/8 N/A
026-720E0040 Right Angle AC Gearmotor AC 41/34
 148/179
 40
 115/230 1/8 N/A
026-720E0050 Right Angle AC Gearmotor AC 33/27
 185/223
 50
 115/230 1/8 N/A
026-720E0060 Right Angle AC Gearmotor AC 28/23
 222/268
 60 115/230 1/8 N/A
026-720E0080 Right Angle AC Gearmotor AC 21/17
 296/357
 80
 115/230 1/8 N/A
026-720E0100 Right Angle AC Gearmotor AC 17/14
 370/447
 100
 115/230 1/8 N/A
026-720E0120 Right Angle AC Gearmotor AC 14/11
 444/536
 120
 115/230 1/8 N/A
026-720E0150 Right Angle AC Gearmotor AC 11/9
 296/363
 150
 115/230 1/15 N/A
026-720E0180 Right Angle AC Gearmotor AC 9/8
 356/435
 180
 115/230 1/15 N/A
026-720E0240 Right Angle AC Gearmotor AC 7/6
 474/580
 240
 115/230 1/15 N/A
027-720G0010 Right Angle AC Gearmotor
 AC 159
 35
 10
 230
 1/8 N/A
027-720G0015 Right Angle AC Gearmotor AC 106
 55
 15
 230 1/8 N/A
027-720G0020 Right Angle AC Gearmotor AC 80
 73
 20
 230 1/8 N/A
027-720G0030 Right Angle AC Gearmotor AC 53
 105
 30
 230 1/8 N/A
027-720G0040 Right Angle AC Gearmotor AC 40
 145
 40
 230 1/8 N/A
027-720G0050 Right Angle AC Gearmotor AC 32
 185
 50
 230 1/8 N/A
027-720G0060 Right Angle AC Gearmotor AC 27
 220
 60 230 1/8 N/A
027-720G0080 Right Angle AC Gearmotor AC 20
 295
 80
 230 1/8 N/A
027-720G0100 Right Angle AC Gearmotor AC 16
 365
 100
 230 1/8 N/A
027-720G0120 Right Angle AC Gearmotor AC 13
 440
 120
 230 1/8 N/A
027-720G0150 Right Angle AC Gearmotor AC 11
 295
 150
 230 1/15 N/A
027-720G0180 Right Angle AC Gearmotor AC 9
 355
 180
 230 1/15 N/A
027-720G0240 Right Angle AC Gearmotor AC 7
 470
 240
 230 1/15 N/A
021-720A0010 Right Angle DC Gearmotor
 DC 173
 35
 10
 12
 1/8 P158-200-2001
021-720A0015 Right Angle DC Gearmotor DC 115
 52
 15
 12 1/8 P158-200-2001
021-720A0020 Right Angle DC Gearmotor DC 86
 70
 20
 12 1/8 P158-200-2001
021-720A0030 Right Angle DC Gearmotor DC 58
 104
 30
 12 1/8 P158-200-2001
021-720A0040 Right Angle DC Gearmotor DC 43
 139
 40
 12 1/8 P158-200-2001
021-720A0050 Right Angle DC Gearmotor DC 35
 173
 50
 12 1/8 P158-200-2001
021-720A0060 Right Angle DC Gearmotor DC 29
 208
 60 12 1/8 P158-200-2001
021-720A0080 Right Angle DC Gearmotor DC 21
 277
 80
 12 1/8 P158-200-2001
021-720A0100 Right Angle DC Gearmotor DC 17
 346
 100
 12 1/8 P158-200-2001
021-720A0120 Right Angle DC Gearmotor DC 14
 415
 120
 12 1/8 P158-200-2001
021-720A0150 Right Angle DC Gearmotor DC 12
 227
 150
 12 1/17 P158-200-2001
021-720A0180 Right Angle DC Gearmotor DC 10
 273
 180
 12 1/17 P158-200-2001
021-720A0240 Right Angle DC Gearmotor DC 8
 364
 240
 12 1/17 P158-200-2001
021-720C0010 Right Angle DC Gearmotor
 DC 178
 35
 10
 24
 1/8 P158-200-2001
021-720C0015 Right Angle DC Gearmotor DC 119
 52
 15
 24 1/8 P158-200-2001
021-720C0020 Right Angle DC Gearmotor DC 89
 70
 20
 24 1/8 P158-200-2001
021-720C0030 Right Angle DC Gearmotor DC 59
 104
 30
 24 1/8 P158-200-2001
021-720C0040 Right Angle DC Gearmotor DC 45
 139
 40
 24 1/8 P158-200-2001
021-720C0050 Right Angle DC Gearmotor DC 36
 173
 50
 24 1/8 P158-200-2001
021-720C0060 Right Angle DC Gearmotor DC 30
 208
 60 24 1/8 P158-200-2001
021-720C0080 Right Angle DC Gearmotor DC 22
 277
 80
 24 1/8 P158-200-2001
021-720C0100 Right Angle DC Gearmotor DC 18
 346
 100
 24 1/8 P158-200-2001
021-720C0120 Right Angle DC Gearmotor DC 15
 415
 120
 24 1/8 P158-200-2001
021-720C0150 Right Angle DC Gearmotor DC 14
 227
 150
 24 1/13 P158-200-2001
021-720C0180 Right Angle DC Gearmotor DC 11
 332
 180
 24 1/13 P158-200-2001
021-720C0240 Right Angle DC Gearmotor DC 8
 442
 240
 24 1/13 P158-200-2001
021-720D0010 Right Angle DC Gearmotor
 DC 177
 35
 10
 90
 1/8 P158-200-9000
021-720D0015 Right Angle DC Gearmotor DC 118
 52
 15
 90 1/8 P158-200-9000
021-720D0020 Right Angle DC Gearmotor DC 89
 70
 20
 90 1/8 P158-200-9000
021-720D0030 Right Angle DC Gearmotor DC 59
 104
 30
 90 1/8 P158-200-9000
021-720D0040 Right Angle DC Gearmotor DC 44
 139
 40
 90 1/8 P158-200-9000
021-720D0050 Right Angle DC Gearmotor DC 35
 173
 50
 90 1/8 P158-200-9000
021-720D0060 Right Angle DC Gearmotor DC 30
 208
 60 90 1/8 P158-200-9000
021-720D0080 Right Angle DC Gearmotor DC 22
 277
 80
 90 1/8 P158-200-9000
021-720D0100 Right Angle DC Gearmotor DC 18
 346
 100
 90 1/8 P158-200-9000
021-720D0120 Right Angle DC Gearmotor DC 15
 415
 120
 90 1/8 P158-200-9000
021-720D0150 Right Angle DC Gearmotor DC 12
 227
 150
 90 1/15 P158-200-9000
021-720D0180 Right Angle DC Gearmotor DC 10
 332
 180
 90 1/15 P158-200-9000
021-720D0240 Right Angle DC Gearmotor DC 8
 442
 240
 90 1/15 P158-200-9000
