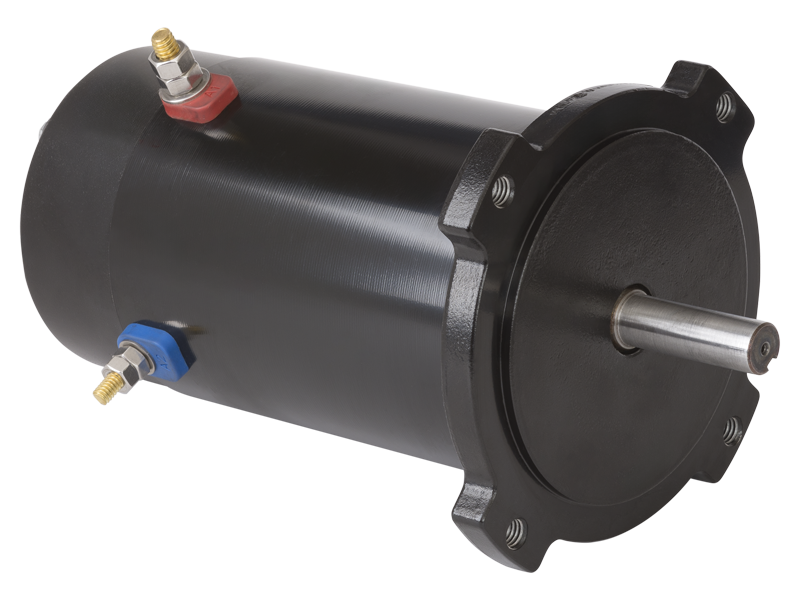

Prestolite Motors
PMDC - Medium Duty

Outputs from 1.0 to 1.8 hp, torque from 0.1 to 8.85 ft-lb and speeds from 1000 to 5800 rpm characterize these versatile medium-duty PMDC motors. Ideal for many applications, including agricultural equipment, industrial pumps, salt spreaders, treadmills, wheelchairs, winches and more. Customization is available.
NNN Prestolite Motors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
NNN Prestolite Motors

Features & Benefits

Benefit Card
Protection Icon

Durable & Reliable

Rugged designs made with the highest quality materials withstand the most demanding operating environments.
Benefit Card
Customization Icon

Customizable

Tailor to your specs: Thermal protection, frame coatings, mounting, low noise, IP / NEMA ratings, shafts, volts and more!
Benefit Card
Global Manufacturing Icon

Manufacturing

Options include ISO 9001 certified state-of-the-art facilities in North America and Asia to provide better lead times and support.
Benefit Card
Peace of Mind

Peace of Mind

Bison has a century of expertise and is a business of AMETEK - the industrial technology solutions leader with $7B+ in sales.



Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • FFF
  • GGG
  • LLL
  • NNN

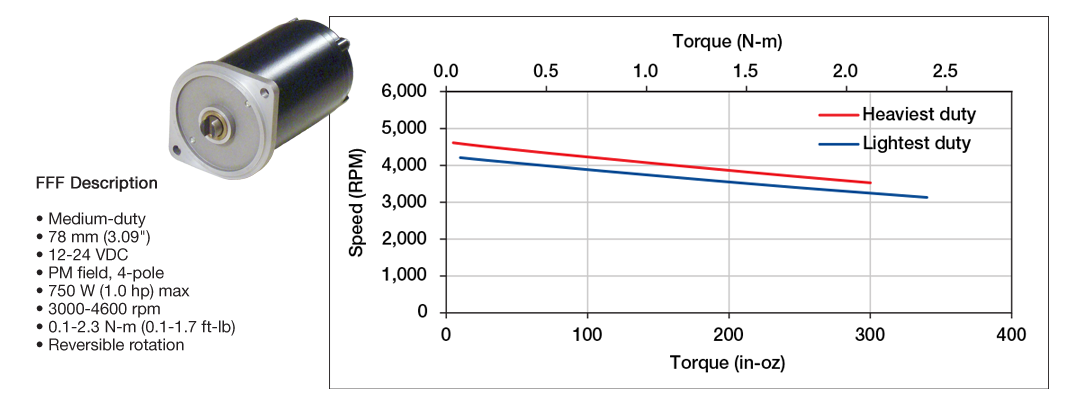

Prestolite Motors FFF Performance Curve

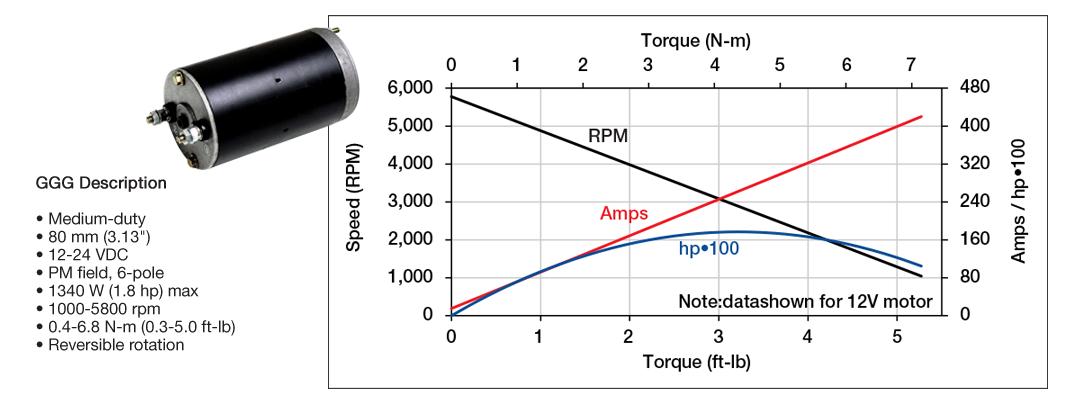

Prestolite Motors GGG Performance Curve

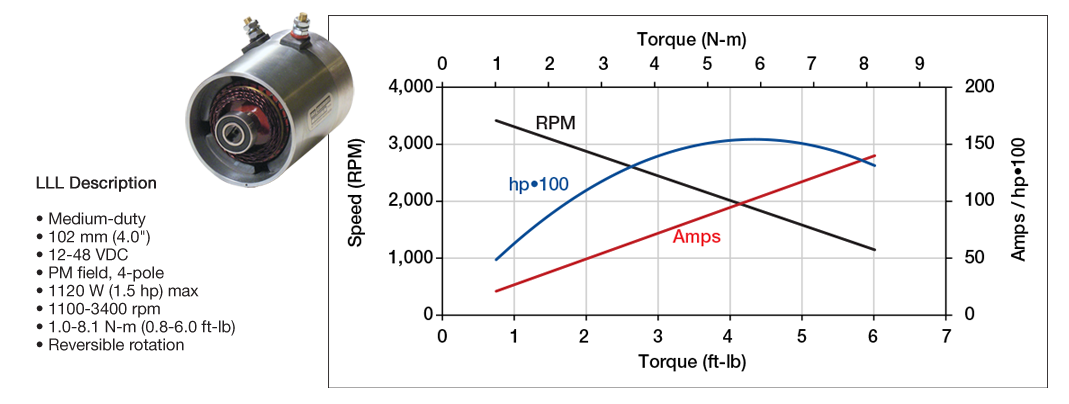

Prestolite Motors LLL Performance Curve

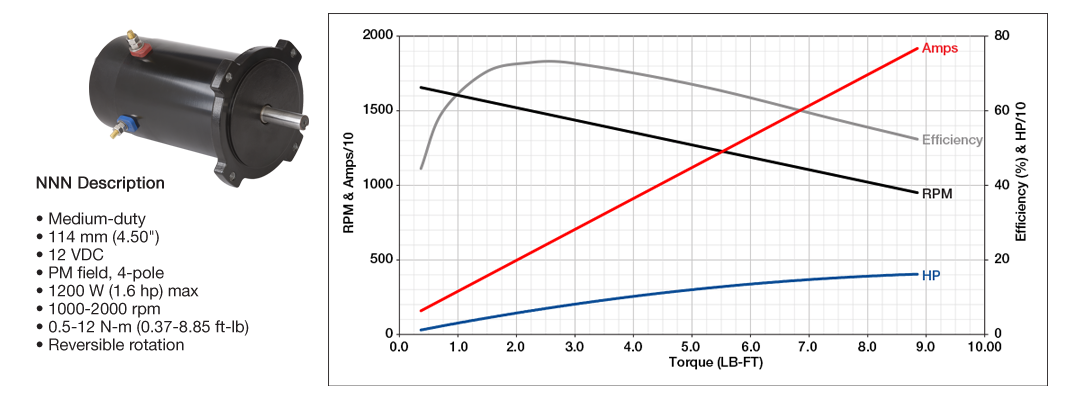

NNN Prestolite Motors Performance Curve

Model Number Frame Size Fan Stages AC/DC Volt Motor Type Alt Parts
FFF-007 3.1 N/A DC 12 PMDC - 4 pole N/A
FFF-060 3.1 N/A DC 12 PMDC - 4 pole N/A
GGG-001 3.1 N/A DC 12 PMDC - 6 Pole N/A
GGG-002 3.1 N/A DC 12 PMDC - 6 Pole N/A
NNN-007 4.5 N/A DC 12 PMDC - 4 pole N/A
NNN-008 4.5 N/A DC 12 PMDC - 4 pole N/A

Markets & Applications

Agricultural Equipment
Agricultural
Equipment
Industrial Pumps
Industrial
Pumps
Snow Plow Icon
Snow Plows &
Salt Spreaders
Treadmills
Treadmills
Wheel Chairs
Wheelchair
Lifts
Winch Icon
Winches &
Hoists

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
