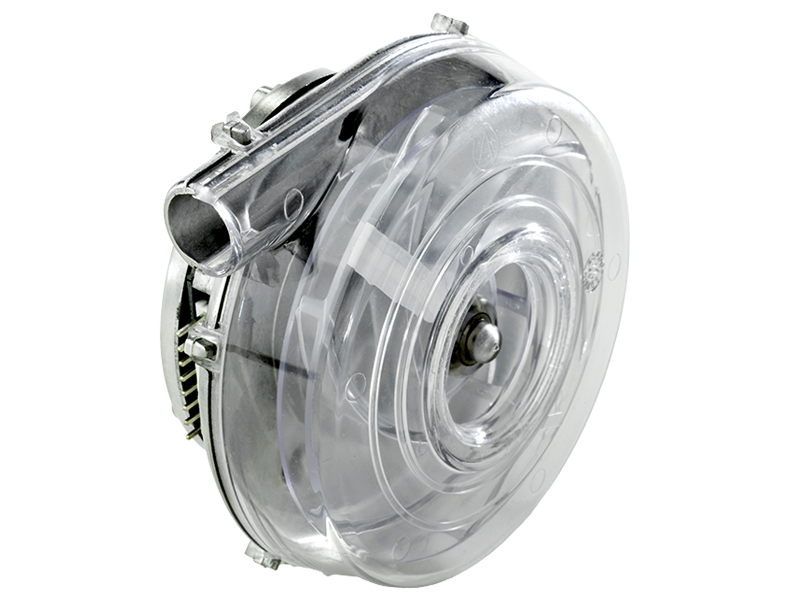

Find a productWindjammer® 5.0"
Brushless Blowers
Reach pressures up to 20" H2O with flow rates up to 42 CFM. Offering engineers unparalleled design flexibility and performance in compact dimensions, these blowers enable versatile integration across a wide range of vacuum and pressure applications.
Features & Benefits
Compact Design
Brushless DC motor drives coupled to high efficiency fan systems in compact, cost-effective packages.
Design Flexibility
Custom speed and acceleration profiles, over current safety limits and error logging provide design freedom and fuel innovation.
Long Life
Durable brushless construction withstands the wear and tear of constant use. Extends life up to 25,000 running hours.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
-

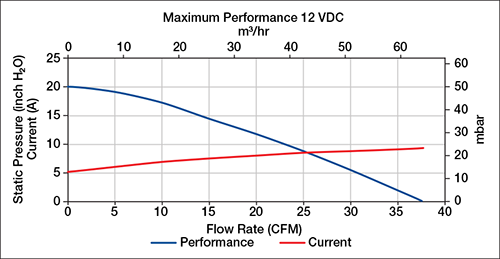

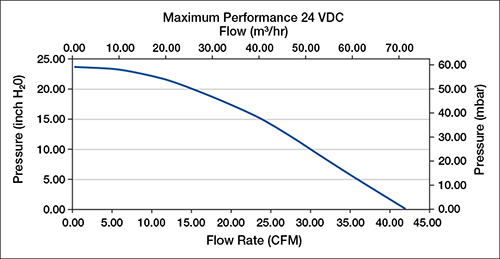

Curves
-
Options
-
Case Studies
- Integrated controller models for proven performance
- External controller models to enables one set of controls
- Commutation based on hall effect sensors
- Tach-output is available for easy monitoring of blower speeds
- 2-plane dynamic balancing available to reduce vibration
- Speed modulation controlled by potentiometer setting or by analog speed command input
- Performance tuning for your application’s needs
| Model Number | Frame Size | Fan Stages | AC/DC | Volt | Motor Type | Alt Parts |
|---|---|---|---|---|---|---|
| 117528-01 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119319-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119375-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119375-01 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119375-03 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119375-54 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119378-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119378-01 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119378-02 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119378-52 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119378-56 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-01 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-02 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-03 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-04 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-05 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-50 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119379-52 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119380-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119380-03 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119381-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119381-02 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119381-52 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119382-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119382-02 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119382-03 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119382-04 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119382-52 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 119383-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119384-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119384-02 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119384-06 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119384-52 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119384-53 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-01 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-02 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-03 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-52 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 119385-54 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 150016-00 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 150016-02 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 150016-52 | 5 | 1 | DC | 24 | Winjammer 5.0 - BLDC | N/A |
| 150017-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150017-02 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150017-50 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150017-52 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150017-53 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150103-00 | 5 | 1 | DC | 48 | Winjammer 5.0 - BLDC | N/A |
| 150166-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
| 150302-00 | 5 | 1 | DC | 12 | Winjammer 5.0 - BLDC | N/A |
