Washdown Products

8-350 RPM · 16-500 in-lbs · 1/7 and 1/8 HP · AC Inverter Duty Motor

• IP69K washdown rated
• Motor and gear train enclosed in one sealed stainless steel shell.
• Two part, spring loaded stainless steel and EPDM triple lip shaft seal.
• 304 stainless steel cover
• EPDM O-rings for a tight seal
• 316 stainless steel, o-ring sealed hex bolts hold cover in place.
• Stainless steel output shaft with captured keyway.
• Modular gear train incorporates sealed ball bearings and is capable of high load conditions.
• Food grade H1 grease is used for maintenance-free lifetime lubrication.
• Laser marked motor nameplate
• Removable IP69K ABS cordset connects to stainless steel multi-pin connector.
• 230 V, 60/50 Hz, inverter duty motor.

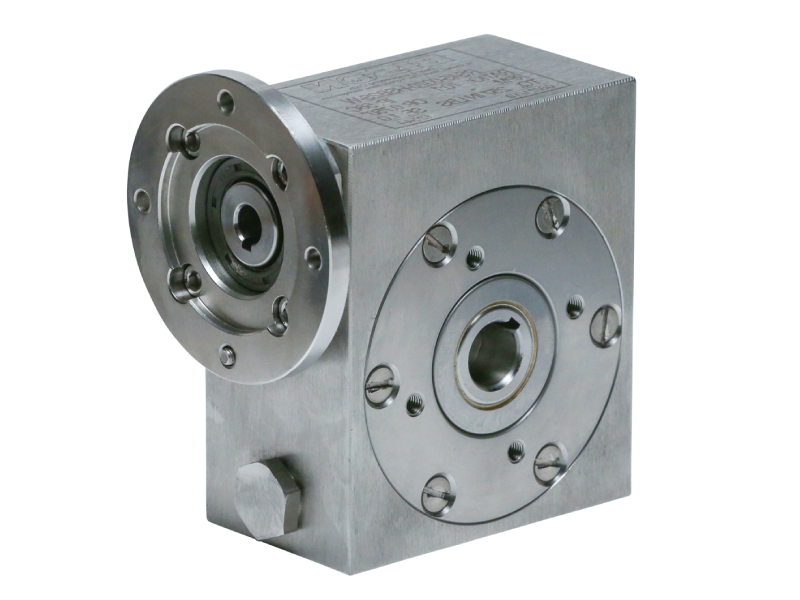

Stainless Steel Shell Worm Gear, 257 - 2921 in-lbs., 1/4 - 5 HP, 17.2 - 250 RPM


IP69K Rated
Full stainless steel smooth surface designed to withstand high pressure washdown environment.

Options
Protective seals cup to withstand high pressure cleaning for hollow or extended shaft versions

Output Shaft
Interchangeable right or left hand output shafts available

Single Piece Stainless Steel Allow Housing
Special housing designed to keep adequate lubrication with low oil quantity to avoid internal pressures

Flange
Fully modular to NEMA C Flange or IEC B14

Second Bearing
Standard second bearing on motor flange side

100% Factory Pressure Leak Tested

O-Rings on All Closing Covers



Configure A Model Based on Your Specs
Use the 3D CAD Configurator below to select the specs needed for your application and generate a 3D CAD Model or download a product data sheet.

1/2 - 2 HP · 230/460 Volts · 1720 - 1760 RPM Washdown Motors

Stainless steel Motors for food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns.

When food, beverage or pharmaceutical production plants are washed down, the motors - along with other parts - are often subjected to high pressure water jets (sometimes at high temperatures) or even more aggressive cleaning agents.

Bison SS30 stainless steel motors can withstand this operating condition, that on the contrary can cause damage to other kind of motor, or even contaminate the end product.

Unlike standard motors, the SS30 motors have no cooling fins, no paint to chip or flake and no surface that will rust. This means that waste products can be washed away easily leaving no residue and the motor can be used with confidence in food processing areas, even the rating plate is engraved on the outer NDE cover to reduce areas where bacteria can lurk where hygiene is essential.
