Prestolite Motors
PMDC - Light Duty

Outputs from 0.3 to 1.3 hp, torque from 0.05 to 3.1 ft-lb and speeds from 500 to 9000 rpm characterize these versatile light-duty PMDC motors. Ideal for many applications, including agricultural machinery, industrial pumps, passenger lifts, wheelchairs, winches and more. Customization is available.
EEE Prestolite Motors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON

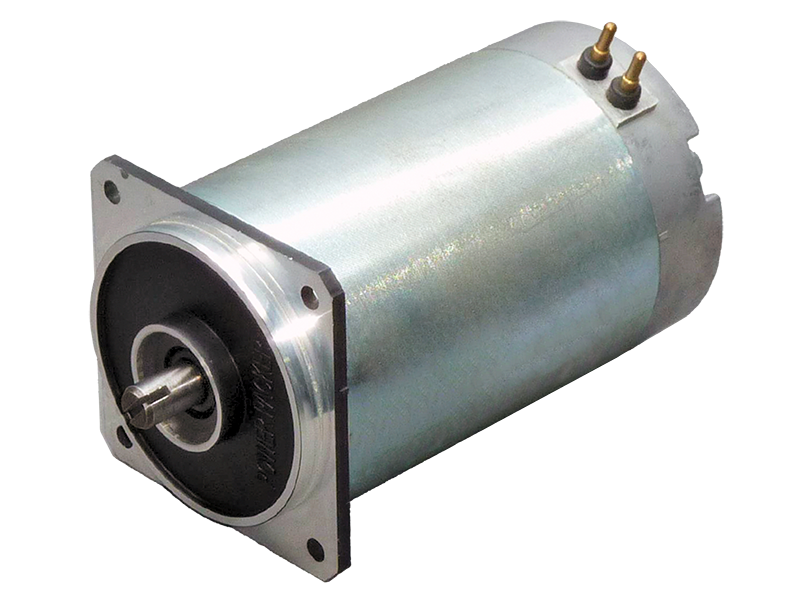

EEE Prestolite Motors

Features & Benefits

Benefit Card
Protection Icon

Durable & Reliable

Rugged designs made with the highest quality materials withstand the most demanding operating environments.
Benefit Card
Customization Icon

Customizable

Tailor to your specs: Thermal protection, frame coatings, mounting, low noise, IP / NEMA ratings, shafts, volts and more!
Benefit Card
Global Manufacturing Icon

Manufacturing

Options include ISO 9001 certified state-of-the-art facilities in North America and Asia to provide better lead times and support.
Benefit Card
Peace of Mind

Peace of Mind

Bison has a century of expertise and is a business of AMETEK - the industrial technology solutions leader with $7B+ in sales.



Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

  • CPM
  • EEE
  • PNK

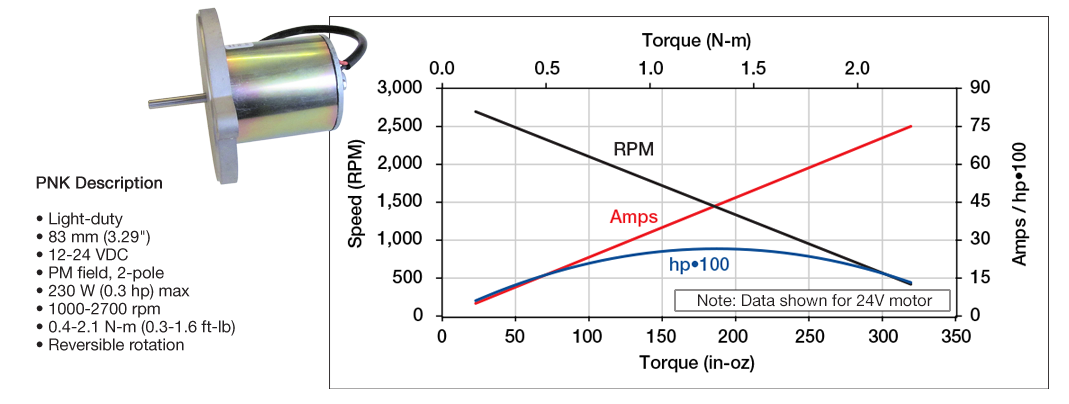

Prestolite Motors CPM Performance Curve

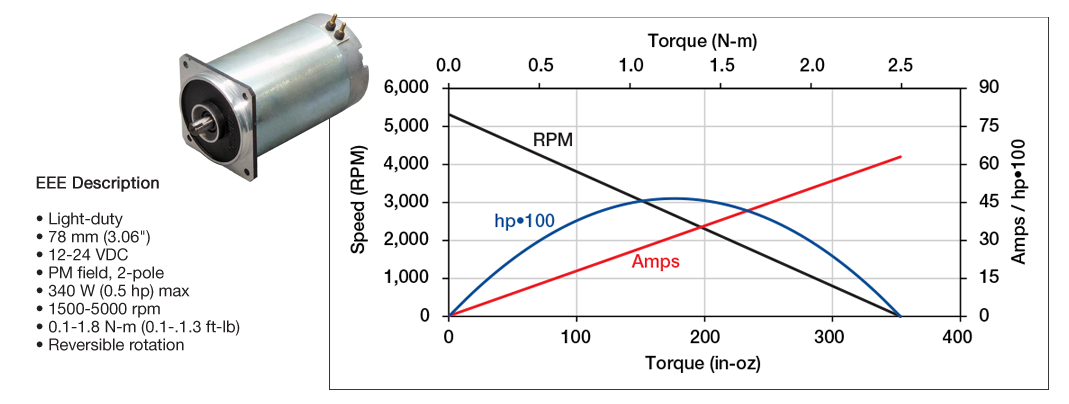

Prestolite Motors EEE Performance Curve

Model Number Frame Size Fan Stages AC/DC Volt Motor Type Alt Parts
CPM-023 3.2 N/A DC 12 PMDC - 2 Pole N/A
CPM-055 3.2 N/A DC 120 PMDC - 2 Pole N/A
CPM-146 3.2 N/A DC 90 PMDC - 2 Pole N/A
CPM-173 3.2 N/A DC 240 PMDC - 2 Pole N/A
CPM-181 3.2 N/A DC 48 PMDC - 2 Pole N/A
PNK-4002A 3.3 N/A DC 24 PMDC - 2 Pole N/A

Markets & Applications

Agricultural Equipment
Agricultural
Equipment
Industrial Pumps
Industrial
Pumps
Passenger Lifts
Passenger
Lifts
Snow Plow Icon
Snow Plows &
Salt Spreaders
Treadmills
Treadmills
Wheel Chairs
Wheelchair
Lifts

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
