Bypass Motors

Lamb® Bypass Motors

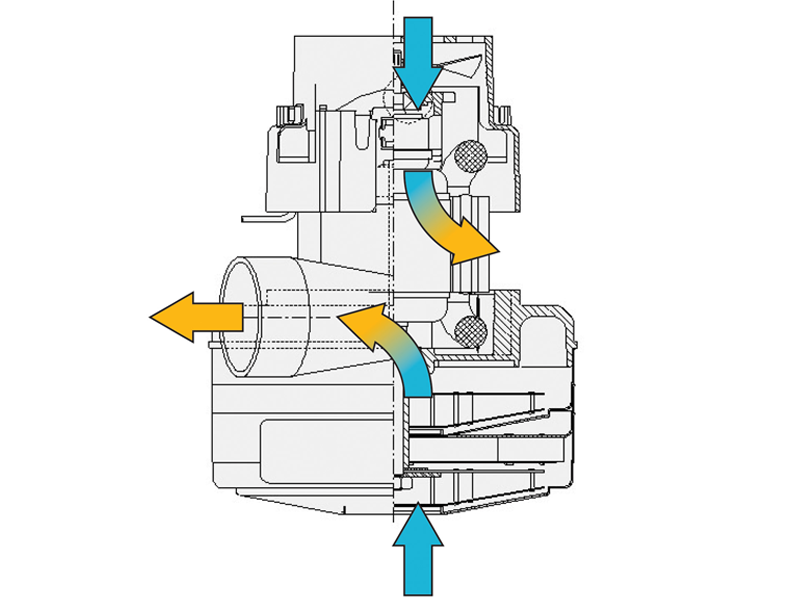

In bypass motors, the working air is independent from the cooling air. A separate fan is used to direct cooling air over the windings (armature and field).

Peripheral and tangential blowers are the two subtypes of bypass motors, both featuring a round-cylinder morphology to accommodate the rotating circular fan.

However, tangential bypass blowers include a horn to force air to exit the blower at a right angle to the air-inlet direction. The horn provides a convenient way to capture and direct the pressurized exhaust air.

Instead of a horn for air discharge, peripheral bypass blowers include small louvres around the side of the cylinder. Air exits as if it is leaking out of the cylinder instead of being directed out.

The motors come in single or multiple stages. Additional fan stages increase vacuum capability but reduce air flow due to increased impedance.

Bison® produces various bypass motors for vacuum and blower applications, including floor cleaning equipment, animal grooming dryers, sprayers, foggers and more.

Products

Lamb 48 Bypass Peripheral Vacuum Motors

Lamb® 4.8" Bypass Peripheral Vacuum Motors

Reach sealed vacuums up to 76" of H2O or flow rates up to 92 CFM. The motors feature all diecast construction and deliver powerful suction in a compact design. Serviceable cartridge carbon brushes ensure extended life.
Lamb 5.1 Bypass Peripheral Vacuum Motors

Lamb® 5.1" Bypass Peripheral Vacuum Motors

Reach sealed vacuums up to 83" of H2O or flow rates up to 106 CFM. The motors feature economical thermoset construction and deliver powerful suction in a compact design. Serviceable carbon only brushes ensure extended life.
Lamb 57 Bypass Peripheral Vacuum Motors

Lamb® 5.7" Bypass Peripheral Vacuum Motors

Reach sealed vacuums up to 160" of H2O or flow rates up to 107 CFM. Standard louvered and low noise (ACUSTEK) discharges are available. For more than a century, these motors have been a staple in many industries, including commercial floor care, car wash, industrial and more.
Lamb 57 Bypass Tangential Vacuum Motors

Lamb® 5.7" Bypass Tangential Vacuum Motors

Reach sealed vacuums up to 220" of H2O or flow rates up to 107 CFM. The options include either diecast or thermoset horn discharges. Both are ideal for guiding pressurized air and optimizing these motors for a variety of vacuum- and pressure-based applications.
Lamb 66 Bypass Tangential Vacuum Motors

Lamb® 6.6" Bypass Tangential Vacuum Motors

Reach sealed vacuums up to 160" of H2O or flow rates up to 170 CFM. These motors are designed to increase efficiency, extend brush, bearing and battery life as well as to improve noise.
Lamb 72 Bypass Peripheral Vacuum Motor

Lamb® 7.2" Bypass Peripheral Vacuum Motors

Reach sealed vacuums of up to 135" of H2O or flow rates up to 125 CFM. The product’s industrial construction provides reliability, durability and life to your applications.
Lamb 72 Bypass Tangential Vacuum Motors

Lamb® 7.2" Bypass Tangential Vacuum Motors

Reach sealed vacuums up to 135" of H2O or flow rates up to 125 CFM. For decades, these motors have been offering the industry quality, reliability and life with classical, durable construction and many other features.
Lamb 75 Hazardous Duty Bypass Peripheral Vacuum Motors

Lamb® 7.5" Bypass Peripheral Vacuum Motors Hazardous Duty

Reach sealed vacuums up to 68" of H2O or flow rates up to 142 CFM. The motors, totally enclosed and externally fan cooled for added safety, are approved for use in environments with flammable dust and some vapors. They meet UL 674 Electric Motors for Hazardous Locations (UL file E25653).
Lamb 75 Bypass Peripheral Vacuum Motors

Lamb® 7.5" Bypass Peripheral Vacuum Motors Industrial

Reach sealed vacuums up to 88" of H2O or flow rates up to 126 CFM. The legacy design has been setting the standard for industrial applications for decades. All diecast construction and serviceable brushes extend the life of the universal motor.
Lamb 84 Bypass Tangential Vacuum Motors

Lamb® 8.4" Bypass Tangential Vacuum Motors

Reach sealed vacuums up to 152" of H2O or flow rates up to 166 CFM. The motors were designed to increase efficiency, extend brush, bearing and battery life as well as to improve noise.
Lamb 9 Flo-Tek Bypass Tangential Vacuum Motors

Lamb® 9" Bypass Tangential Vacuum Motors Flotek

Reach sealed vacuums up to 68" of H2O or flow rates up to 240 CFM. Lamb's highest flow product line specifically designed for material handling applications.
