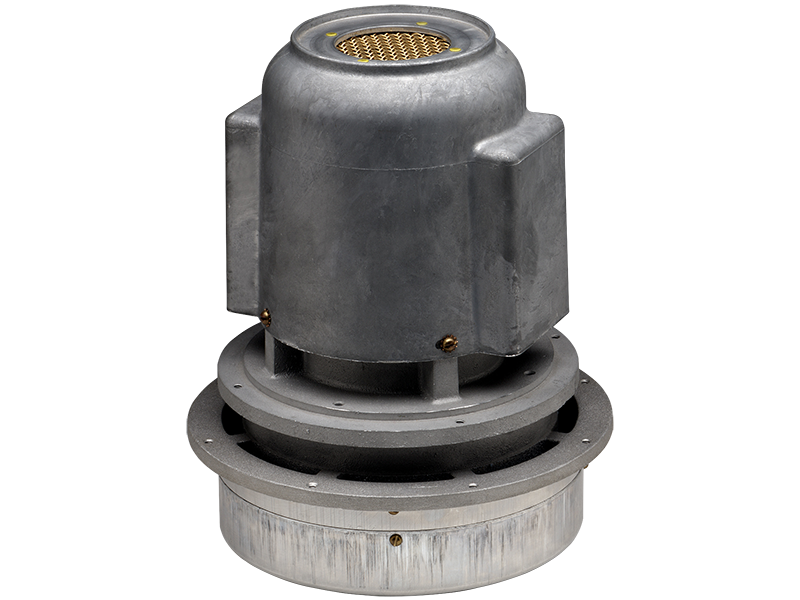

Find a productLamb® 7.5" Bypass Peripheral Vacuum Motors Hazardous Duty
Reach sealed vacuums up to 68" of H2O or flow rates up to 142 CFM. The motors, totally enclosed and externally fan cooled for added safety, are approved for use in environments with flammable dust and some vapors. They meet UL 674 Electric Motors for Hazardous Locations (UL file E25653).
Features & Benefits
UL Certified
Meets UL 674 Electric Motors for Hazardous Locations, making it ideal for environments with flammable dust and some vapors.
Legacy Brand
Tried and true product line setting the standard for the industry for decades and continuing to serve customers today.
Extends Life
Incorporates durable construction that can withstand the wear and tear of constant use. Reduces repairs and replacements.
Highest Quality
Provides superior performance, durability and longevity, standing out in an industry inundated with subpar alternatives.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
-
High Volt
-
Low Volt
-
Case Studies
| Features | |
|---|---|
| Models | Standard |
| Constructions | Diecast |
| Motor Designs | Comm Up |
| Discharges | Peripheral |
| Brushes | Double |
| Fan Stages | 2 |
| Voltages | 120 or 240 |
| Performance | |
|---|---|
| Sealed Vacuum (In. of H20) | 68 |
| 7/8 Orifice Vacuum (In. of H20) | 40 |
| Open Airflow (CFM) | 142 |
| Peak Airwatts | 320 |
| Typical Operating Watts (7/8" Orifice) | 1200 |
| Features | |
|---|---|
| Models | Standard |
| Constructions | Diecast |
| Motor Designs | Comm Up |
| Discharges | Peripheral |
| Brushes | Double |
| Fan Stages | 2 |
| Voltages | 36 |
| Performance | |
|---|---|
| Sealed Vacuum (In. of H20) | 60 |
| 7/8 Orifice Vacuum (In. of H20) | 36 |
| Open Airflow (CFM) | 134 |
| Peak Airwatts | 285 |
| Typical Operating Watts (7/8" Orifice) | 1025 |
| Model Number | Frame Size | Fan Stages | AC/DC | Volt | Motor Type | Alt Parts |
|---|---|---|---|---|---|---|
| 114560 | 7.5 | 2 | AC | 120 | 7.5-HazDutIndust | N/A |
| 114586 | 7.5 | 2 | AC | 120 | 7.5-HazDutIndust | N/A |
| 114587 | 7.5 | 2 | AC | 230 | 7.5-HazDutIndust | N/A |
| 114589 | 7.5 | 2 | AC | 230 | 7.5-HazDutIndust | N/A |
| 117582-00 | 7.5 | 2 | DC | 24 | 7.5-HazDutIndust | N/A |
| 122615 | 7.5 | 2 | DC | 36 | 7.5-HazDutIndust | N/A |
Markets & Applications
Providing UL Certified Electric Motors for Hazardous-Duty Locations Including. . .
Flammable Dust Environments
Flammable Vapor Environments
And So
Many More!
Many More!
Why Bison
Design Expertise, Customizable Solutions & Integration Support
Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
Engage with our engineers, locate an authorized distributor or connect with customer and technical support.
