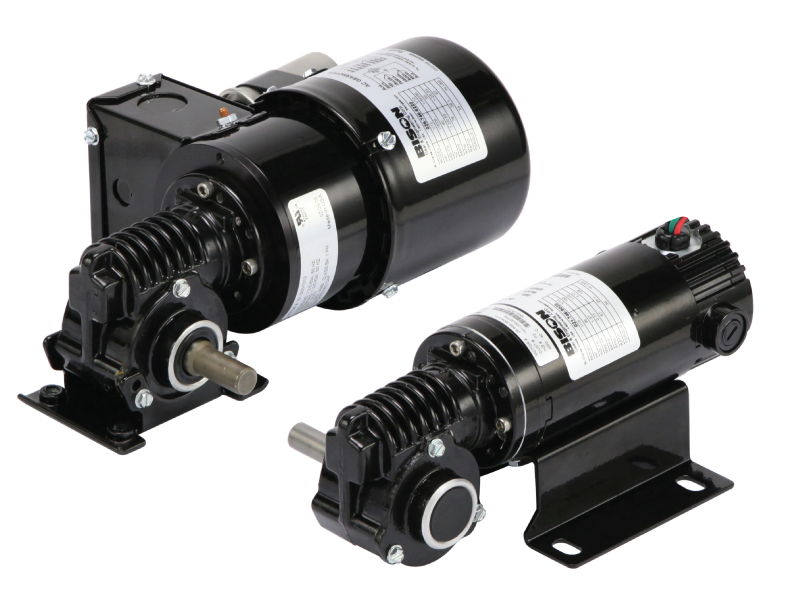

Bison® 746 Series Right Angle Gearmotors

27-180 RPM · 15-75 in-lbs · 1/12 - 1/15 HP · AC and DC options available

Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)

Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Ball and Needle
Lubrication: Lifetime Oil Bath Sealed and O-Ringed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel Worm, Bronze Gear
Duty Rating: Continuous

Bison 746 Series Gearmotors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Bison 746 Series Gearmotors

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
Compact Design Icon

Compact Design

Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs.)
 Gear Ratio :1
 Volt Input HP
 Replacement Brushes
026-746-6010 Right Angle AC Gearmotor
 AC 157
 20
 10
 115/230
 1/12 N/A
026-746-6015 Right Angle AC Gearmotor AC 105
 28
 15
 115/230 1/12 N/A
026-746-6020 Right Angle AC Gearmotor AC 79
 33
 20
 115/230 1/12 N/A
026-746-6030 Right Angle AC Gearmotor AC 54
 45
 30
 115/230 1/12 N/A
026-746-6040 Right Angle AC Gearmotor AC 41
 57
 40
 115/230 1/12 N/A
026-746-6060 Right Angle AC Gearmotor AC 27
 75
 60
 115/230 1/12 N/A
021-746-9010 Right Angle DC Gearmotor DC 180
 15
 10
 90 1/15 P158-200-2600
021-746-9015 Right Angle DC Gearmotor DC 120
 26
 15
 90 1/15 P158-200-2600
021-746-9020 Right Angle DC Gearmotor DC 87
 30
 20
 90 1/15 P158-200-2600
021-746-9030 Right Angle DC Gearmotor DC 59
 41
 30
 90 1/15 P158-200-2600
021-746-9040 Right Angle DC Gearmotor DC 45
 52
 40
 90 1/15 P158-200-2600
021-746-9060 Right Angle DC Gearmotor DC 30
 68
 60
 90 1/15 P158-200-2600
021-746-9310 Right Angle DC Gearmotor DC 180
 15
 10
 90 1/15 P158-200-2600
021-746-9315 Right Angle DC Gearmotor DC 120
 26
 15
 90 1/15 P158-200-2600
021-746-9320 Right Angle DC Gearmotor DC 87
 30 20
 90 1/15 P158-200-2600
021-746-9330 Right Angle DC Gearmotor DC 59
 41
 30
 90 1/15 P158-200-2600
021-746-9340 Right Angle DC Gearmotor DC 45
 52
 40
 90 1/15 P158-200-2600
021-746-9360 Right Angle DC Gearmotor DC 30
 68
 60
 90 1/15 P158-200-2600
