Bison® 730 Series Powerstar Right Angle Gearmotors

7-198 RPM · 79-1730 in-lbs · 1/4 - 1/2 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque

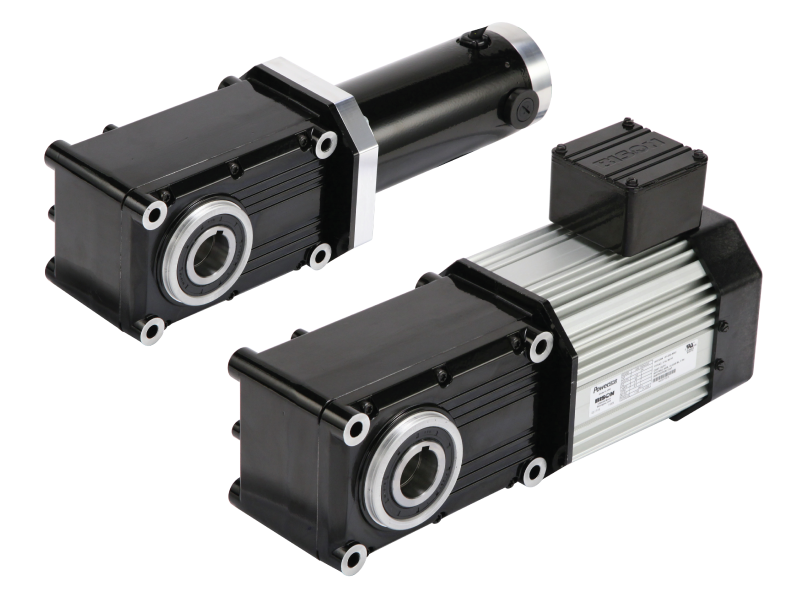

Bison 730 Series Gearmotors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Bison 730 Series Gearmotors

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
High Efficiency Icon

Energy Efficient

Advanced hypoid gearing provides improved energy efficiency along with ground gearing for whisper quiet operation and low backlash precision.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs.)
 Gear Ratio :1
 Volt Input HP
 Replacement Brushes
026-730A0010T Right Angle AC Gearmotor
 AC 160
 168
 10
 115
 1/2 N/A
026-730A0015T Right Angle AC Gearmotor AC 108
 239
 15
 115 1/2 N/A
026-730A0020T Right Angle AC Gearmotor AC 80
 327
 20 115 1/2 N/A
026-730A0030T Right Angle AC Gearmotor AC 53
 487
 30
 115 1/2 N/A
026-730A0040T Right Angle AC Gearmotor AC 40
 655
 40
 115 1/2 N/A
026-730A0050T Right Angle AC Gearmotor AC 32
 814
 50
 115 1/2 N/A
026-730A0060T Right Angle AC Gearmotor AC 27
 982
 60 115 1/2 N/A
026-730A0080 Right Angle AC Gearmotor AC 21
 766
 80
 115 1/3 N/A
026-730A0100 Right Angle AC Gearmotor AC 17
 725
 100
 115 1/4 N/A
026-730A0120 Right Angle AC Gearmotor AC 14
 871
 120
 115 1/4 N/A
026-730A0150 Right Angle AC Gearmotor AC 11
 1090
 150
 115 1/4 N/A
026-730A0180 Right Angle AC Gearmotor AC 9
 1310
 180
 115 1/4 N/A
026-730A0240 Right Angle AC Gearmotor AC 7
 1730
 240
 115 1/4 N/A
026-730E0010T Right Angle AC Gearmotor
 AC 160
 168
 10
 115/230
 1/2 N/A
026-730E0015T Right Angle AC Gearmotor AC 108
 239
 15
 115/230 1/2 N/A
026-730E0020T Right Angle AC Gearmotor AC 80
 327
 20 115/230 1/2 N/A
026-730E0030T Right Angle AC Gearmotor AC 53
 487
 30
 115/230 1/2 N/A
026-730E0040T Right Angle AC Gearmotor AC 40
 655
 40
 115/230 1/2 N/A
026-730E0050T Right Angle AC Gearmotor AC 31
 814
 50
 115/230 1/2 N/A
026-730E0060T Right Angle AC Gearmotor AC 27
 982
 60 115/230 1/2 N/A
026-730E0080 Right Angle AC Gearmotor AC 21
 766
 80
 115/230 1/3 N/A
026-730E0100 Right Angle AC Gearmotor AC 17
 725
 100
 115/230 1/4 N/A
026-730E0120 Right Angle AC Gearmotor AC 15
 871
 120
 115/230 1/4 N/A
026-730E0150 Right Angle AC Gearmotor AC 11
 1090
 150
 115/230 1/4 N/A
026-730E0180 Right Angle AC Gearmotor AC 9
 1310
 180
 115/230 1/4 N/A
026-730E0240 Right Angle AC Gearmotor AC 7
 1730
 240
 115/230 1/4 N/A
027-730G0010T Right Angle AC Gearmotor
 AC 160
 168
 10
 230
 1/2 N/A
027-730G0015T Right Angle AC Gearmotor AC 108
 239
 15
 230 1/2 N/A
027-730G0020T Right Angle AC Gearmotor AC 80
 327
 20 230 1/2 N/A
027-730G0030T Right Angle AC Gearmotor AC 53
 487
 30
 230 1/2 N/A
027-730G0040T Right Angle AC Gearmotor AC 40
 655
 40
 230 1/2 N/A
027-730G0050T Right Angle AC Gearmotor AC 32
 814
 50
 230 1/2 N/A
027-730G0060T Right Angle AC Gearmotor AC 27
 982
 60 230 1/2 N/A
027-730G0080 Right Angle AC Gearmotor AC 21
 766
 80
 230 1/3 N/A
027-730G0100 Right Angle AC Gearmotor AC 17
 725
 100
 230 1/4 N/A
027-730G0120 Right Angle AC Gearmotor AC 14
 871
 120
 230 1/4 N/A
027-730G0150 Right Angle AC Gearmotor AC 11
 1090
 150
 230 1/4 N/A
027-730G0180 Right Angle AC Gearmotor AC 9
 1310
 180
 230 1/4 N/A
027-730G0240 Right Angle AC Gearmotor AC 7
 1730
 240
 230 1/4 N/A
027-730K0010T Right Angle AC Gearmotor
 AC 160
 168
 10
 230/460
 1/2 N/A
027-730K0015T Right Angle AC Gearmotor AC 108
 239
 15
 230/460 1/2 N/A
027-730K0020T Right Angle AC Gearmotor AC 80
 327
 20 230/460 1/2 N/A
027-730K0030T Right Angle AC Gearmotor AC 53
 487
 30
 230/460 1/2 N/A
027-730K0040T Right Angle AC Gearmotor AC 40
 655
 40
 230/460 1/2 N/A
027-730K0050T Right Angle AC Gearmotor AC 32
 814
 50
 230/460 1/2 N/A
027-730K0060T Right Angle AC Gearmotor AC 27
 982
 60 230/460 1/2 N/A
027-730K0080 Right Angle AC Gearmotor AC 21
 766
 80
 230/460 1/3 N/A
027-730K0100 Right Angle AC Gearmotor AC 17
 725
 100
 230/460 1/4 N/A
027-730K0120 Right Angle AC Gearmotor AC 14
 871
 120
 230/460 1/4 N/A
027-730K0150 Right Angle AC Gearmotor AC 11
 1090
 150
 230/460 1/4 N/A
027-730K0180 Right Angle AC Gearmotor AC 9
 1310
 180
 230/460 1/4 N/A
027-730K0240 Right Angle AC Gearmotor AC 7
 1730
 240
 230/460 1/4 N/A
021-730C0010 Right Angle DC Gearmotor
 DC 198
 79
 10
 24
 1/3 Contact Bison
021-730C0015 Right Angle DC Gearmotor DC 132
 118
 15
 24 1/3 Contact Bison
021-730C0020 Right Angle DC Gearmotor DC 99
 158
 20 24 1/3 Contact Bison
021-730C0030 Right Angle DC Gearmotor DC 66
 236
 30
 24 1/3 Contact Bison
021-730C0040 Right Angle DC Gearmotor DC 49
 315
 40
 24 1/3 Contact Bison
021-730C0050 Right Angle DC Gearmotor DC 39
 394
 50
 24 1/3 Contact Bison
021-730C0060 Right Angle DC Gearmotor DC 33
 472
 60 24 1/3 Contact Bison
021-730C0080 Right Angle DC Gearmotor DC 24
 629
 80
 24 1/3 Contact Bison
021-730C0100 Right Angle DC Gearmotor DC 20
 692
 100
 24 1/3 Contact Bison
021-730C0120 Right Angle DC Gearmotor DC 17
 831
 120
 24 1/3 Contact Bison
021-730C0150 Right Angle DC Gearmotor DC 14
 1039
 150
 24 1/3 Contact Bison
021-730C0180 Right Angle DC Gearmotor DC 11
 1246
 180
 24 1/3 Contact Bison
021-730C0240 Right Angle DC Gearmotor DC 9
 1662
 240
 24 1/3 Contact Bison
021-730D0010 Right Angle DC Gearmotor
 DC 210
 79
 10
 90
 1/3 Contact Bison
021-730D0015 Right Angle DC Gearmotor DC 141
 118
 15
 90 1/3 Contact Bison
021-730D0020 Right Angle DC Gearmotor DC 106
 158
 20 90 1/3 Contact Bison
021-730D0030 Right Angle DC Gearmotor DC 70
 236
 30
 90 1/3 Contact Bison
021-730D0040 Right Angle DC Gearmotor DC 53
 315
 40
 90 1/3 Contact Bison
021-730D0050 Right Angle DC Gearmotor DC 42
 394
 50
 90 1/3 Contact Bison
021-730D0060 Right Angle DC Gearmotor DC 35
 472
 60 90 1/3 Contact Bison
021-730D0080 Right Angle DC Gearmotor DC 26
 629
 80
 90 1/3 Contact Bison
021-730D0100 Right Angle DC Gearmotor DC 18
 692
 100
 90 1/3 Contact Bison
021-730D0120 Right Angle DC Gearmotor DC 15
 831
 120
 90 1/3 Contact Bison
021-730D0150 Right Angle DC Gearmotor DC 12
 1039
 150
 90 1/3 Contact Bison
021-730D0180 Right Angle DC Gearmotor DC 10
 1246
 180
 90 1/3 Contact Bison
021-730D0240 Right Angle DC Gearmotor DC 7
 1662
 240
 90 1/3 Contact Bison


Markets & Applications

Agricultural Equipment
Agricultural
Equipment
food service application icon
Food & Beverage
Service
packaging application icon
Packaging
Equipment
Energy Market Icon
Energy
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
