Bison® 712 Series Powerstar Right Angle Gearmotors

7-194 RPM · 10-240 in-lbs · 1/30 - 1/20 HP · AC and DC options available

Best-In-Class Right Angle Hypoid Gearmotors feature:
  • Advanced hypoid gearing technology for improved energy efficiency
  • Maximum power density means a compact profile without compromising performance
  • Exclusive Powerstar EP lubricant for extended life
  • Ground gearing provides whisper quiet operation and low backlash precision
The Hypoid Difference
  • Larger Diameter Pinions for more surface contact area
  • Multiple Tooth Contact handles larger loads at better efficiency
  • Offset Gears transmit higher torque

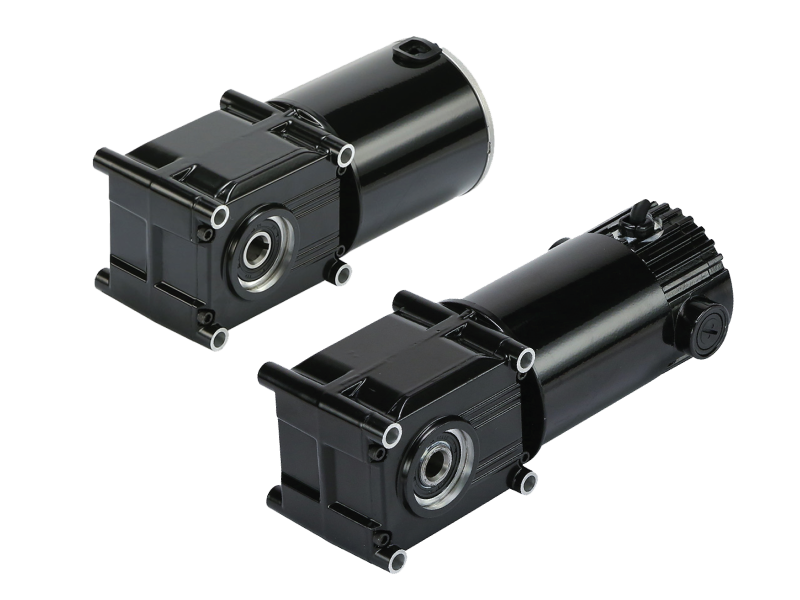

Bison 712 Series Gearmotors
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Bison 712 Series Gearmotors

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
High Efficiency Icon

Energy Efficient

Advanced hypoid gearing provides improved energy efficiency along with ground gearing for whisper quiet operation and low backlash precision.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs.)
 Gear Ratio :1
 Volt Input HP
 Replacement Brushes
026-712A0010 Right Angle AC Gearmotor
 AC 163
 10
 10
 115
 1/20 N/A
026-712A0015 Right Angle AC Gearmotor AC 108
 15
 15
 115 1/20 N/A
026-712A0020 Right Angle AC Gearmotor AC 81
 20
 20 115 1/20 N/A
026-712A0030 Right Angle AC Gearmotor AC 54
 30
 30
 115 1/20 N/A
026-712A0040 Right Angle AC Gearmotor AC 41
 40
 40
 115 1/20 N/A
026-712A0050 Right Angle AC Gearmotor AC 33
 50
 50
 115 1/20 N/A
026-712A0060 Right Angle AC Gearmotor AC 27
 60
 60 115 1/20 N/A
026-712A0080 Right Angle AC Gearmotor AC 20
 80
 80
 115 1/20 N/A
026-712A0100 Right Angle AC Gearmotor AC 16
 100
 100
 115 1/20 N/A
026-712A0120 Right Angle AC Gearmotor AC 14
 120
 120
 115 1/20 N/A
026-712A0150 Right Angle AC Gearmotor AC 11
 150
 150
 115 1/20 N/A
026-712A0180 Right Angle AC Gearmotor AC 9
 180
 180
 115 1/20 N/A
026-712A0200 Right Angle AC Gearmotor AC 8
 200
 200
 115 1/20 N/A
026-712A0240 Right Angle AC Gearmotor AC 7
 240
 240
 115 1/20 N/A
026-712E0010 Right Angle AC Gearmotor
 AC 169/141
 10
 10
 115/230
 1/25 N/A
026-712E0015 Right Angle AC Gearmotor AC 112/94
 15
 15
 115/230 1/25 N/A
026-712E0020 Right Angle AC Gearmotor AC 85/71
 20
 20 115/230 1/25 N/A
026-712E0030 Right Angle AC Gearmotor AC 56/47
 30
 30
 115/230 1/25 N/A
026-712E0040 Right Angle AC Gearmotor AC 42/35
 40
 40
 115/230 1/25 N/A
026-712E0050 Right Angle AC Gearmotor AC 34/28
 50
 50
 115/230 1/25 N/A
026-712E0060 Right Angle AC Gearmotor AC 28/24
 60
 60 115/230 1/25 N/A
026-712E0080 Right Angle AC Gearmotor AC 21/18
 80
 80
 115/230 1/25 N/A
026-712E0100 Right Angle AC Gearmotor AC 17/14
 100
 100
 115/230 1/25 N/A
026-712E0120 Right Angle AC Gearmotor AC 14/12
 120
 120
 115/230 1/25 N/A
026-712E0150 Right Angle AC Gearmotor AC 11/9
 150
 150
 115/230 1/25 N/A
026-712E0180 Right Angle AC Gearmotor AC 9/7
 180
 180
 115/230 1/25 N/A
026-712E0200 Right Angle AC Gearmotor AC 8/7
 200
 200
 115/230 1/25 N/A
026-712E0240 Right Angle AC Gearmotor AC 7/6
 240
 240
 115/230 1/25 N/A
027-712G0010 Right Angle AC Gearmotor
 AC 163
 10
 10
 230
 1/20 N/A
027-712G0015 Right Angle AC Gearmotor AC 109
 15
 15
 230 1/20 N/A
027-712G0020 Right Angle AC Gearmotor AC 82
 20
 20 230 1/20 N/A
027-712G0030 Right Angle AC Gearmotor AC 54
 30
 30
 230 1/20 N/A
027-712G0040 Right Angle AC Gearmotor AC 41
 40
 40
 230 1/20 N/A
027-712G0050 Right Angle AC Gearmotor AC 33
 50
 50
 230 1/20 N/A
027-712G0060 Right Angle AC Gearmotor AC 27
 60
 60 230 1/20 N/A
027-712G0080 Right Angle AC Gearmotor AC 20
 80
 80
 230 1/20 N/A
027-712G0100 Right Angle AC Gearmotor AC 16
 100
 100
 230 1/20 N/A
027-712G0120 Right Angle AC Gearmotor AC 14
 120
 120
 230 1/20 N/A
027-712G0150 Right Angle AC Gearmotor AC 11
 150
 150
 230 1/20 N/A
027-712G0180 Right Angle AC Gearmotor AC 9
 180
 180
 230 1/20 N/A
027-712G0200 Right Angle AC Gearmotor AC 8
 200
 200
 230 1/20 N/A
027-712G0240 Right Angle AC Gearmotor AC 7
 240
 240
 230 1/20 N/A
021-712A0010 Right Angle DC Gearmotor
 DC 179
 10
 10
 12
 1/30 P158-200-2001
021-712A0015 Right Angle DC Gearmotor DC 119
 15
 15
 12 1/30 P158-200-2001
021-712A0020 Right Angle DC Gearmotor DC 89
 20
 20 12 1/30 P158-200-2001
021-712A0030 Right Angle DC Gearmotor DC 60
 30
 30
 12 1/30 P158-200-2001
021-712A0040 Right Angle DC Gearmotor DC 45
 40
 40
 12 1/30 P158-200-2001
021-712A0050 Right Angle DC Gearmotor DC 36
 50
 50
 12 1/30 P158-200-2001
021-712A0060 Right Angle DC Gearmotor DC 30
 60
 60 12 1/30 P158-200-2001
021-712A0080 Right Angle DC Gearmotor DC 22
 80
 80
 12 1/30 P158-200-2001
021-712A0100 Right Angle DC Gearmotor DC 18
 100
 100
 12 1/30 P158-200-2001
021-712A0120 Right Angle DC Gearmotor DC 15
 120
 120
 12 1/30 P158-200-2001
021-712A0150 Right Angle DC Gearmotor DC 12
 150
 150
 12 1/30 P158-200-2001
021-712A0180 Right Angle DC Gearmotor DC 10
 180
 180
 12 1/30 P158-200-2001
021-712A0200 Right Angle DC Gearmotor DC 9
 200
 200
 12 1/30 P158-200-2001
021-712A0240 Right Angle DC Gearmotor DC 7
 240
 240
 12 1/30 P158-200-2001
021-712C0010 Right Angle DC Gearmotor
 DC 194
 10
 10
 24
 1/23 P158-200-2615
021-712C0015 Right Angle DC Gearmotor DC 129
 15
 15
 24 1/23 P158-200-2615
021-712C0020 Right Angle DC Gearmotor DC 97
 20
 20 24 1/23 P158-200-2615
021-712C0030 Right Angle DC Gearmotor DC 65
 30
 30
 24 1/23 P158-200-2615
021-712C0040 Right Angle DC Gearmotor DC 48
 40
 40
 24 1/23 P158-200-2615
021-712C0050 Right Angle DC Gearmotor DC 39
 50
 50
 24 1/23 P158-200-2615
021-712C0060 Right Angle DC Gearmotor DC 32
 60
 60 24 1/23 P158-200-2615
021-712C0080 Right Angle DC Gearmotor DC 24
 80
 80
 24 1/23 P158-200-2615
021-712C0100 Right Angle DC Gearmotor DC 19
 100
 100
 24 1/23 P158-200-2615
021-712C0120 Right Angle DC Gearmotor DC 16
 120
 120
 24 1/23 P158-200-2615
021-712C0150 Right Angle DC Gearmotor DC 13
 150
 150
 24 1/23 P158-200-2615
021-712C0180 Right Angle DC Gearmotor DC 11
 180
 180
 24 1/23 P158-200-2615
021-712C0200 Right Angle DC Gearmotor DC 10
 200
 200
 24 1/23 P158-200-2615
021-712C0240 Right Angle DC Gearmotor DC 8
 240
 240
 24 1/23 P158-200-2615
021-712D0010 Right Angle DC Gearmotor
 DC 189
 10
 10
 24
 1/30 P158-200-2600
021-712D0015 Right Angle DC Gearmotor DC 126
 15
 15
 90 1/30 P158-200-2600
021-712D0020 Right Angle DC Gearmotor DC 94
 20
 20 90 1/30 P158-200-2600
021-712D0030 Right Angle DC Gearmotor DC 63
 30
 30
 90 1/30 P158-200-2600
021-712D0040 Right Angle DC Gearmotor DC 47
 40
 40
 90 1/30 P158-200-2600
021-712D0050 Right Angle DC Gearmotor DC 38
 50
 50
 90 1/30 P158-200-2600
021-712D0060 Right Angle DC Gearmotor DC 31
 60
 60 90 1/30 P158-200-2600
021-712D0080 Right Angle DC Gearmotor DC 23
 80
 80
 90 1/30 P158-200-2600
021-712D0100 Right Angle DC Gearmotor DC 19
 100
 100
 90 1/30 P158-200-2600
021-712D0120 Right Angle DC Gearmotor DC 15
 120
 120
 90 1/30 P158-200-2600
021-712D0150 Right Angle DC Gearmotor DC 12
 150
 150
 90 1/30 P158-200-2600
021-712D0180 Right Angle DC Gearmotor DC 10
 180
 180
 90 1/30 P158-200-2600
021-712D0200 Right Angle DC Gearmotor DC 9
 200
 200
 90 1/30 P158-200-2600
021-712D0240 Right Angle DC Gearmotor DC 8
 240
 240
 90 1/30 P158-200-2600


Markets & Applications

Agricultural Equipment
Agricultural
Equipment
food service application icon
Food & Beverage
Service
packaging application icon
Packaging
Equipment
Energy Market Icon
Energy
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
