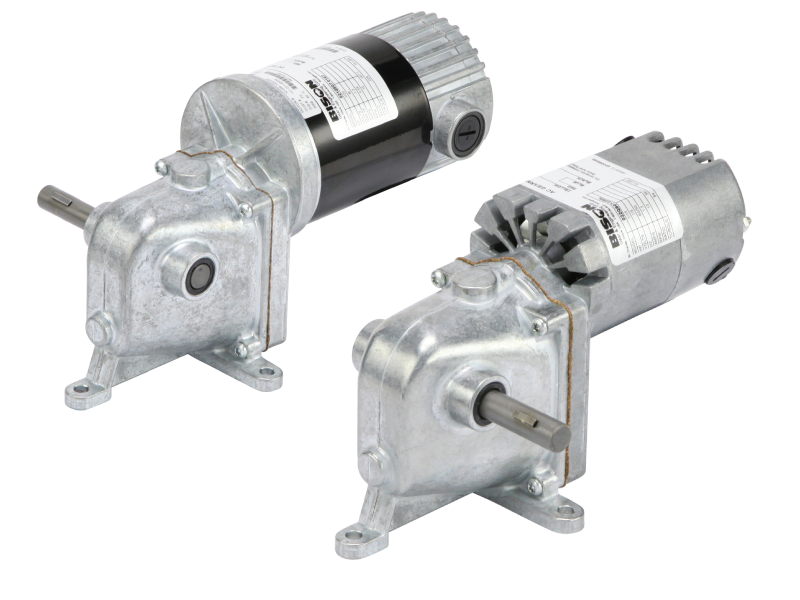

Find a productBison® 060 Series Right Angle Gearmotors
2-90 RPM · 34-250 in-lbs · 1/20 - 1/10 HP · AC and DC options available
Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)
Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Worm: Hardened Steel, Output Gear: Cast Iron
Duty Rating: Continuous
Motor Specifications
Enclosure: TENV (DC), TEFC (AC)
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Permanent Split Capacitor (AC), PMDC (DC)
Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Worm: Hardened Steel, Output Gear: Cast Iron
Duty Rating: Continuous
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Compact Design
Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Continuous Duty
Motors rated for continuous duty operation.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Input Power |
Speed (RPM) |
Torque (in-lbs.) |
Gear Ratio :1 |
Volt | Input HP |
Replacement Brushes |
|---|---|---|---|---|---|---|---|---|
| 026Q607-0037 | Right Angle AC Gearmotor |
AC | 40 |
89 |
37 |
115/230 |
1/12 | N/A |
| 026Q607-0070 | Right Angle AC Gearmotor | AC | 21 |
170 |
70 |
115/230 | 1/12 | N/A |
| 026Q607-0167 | Right Angle AC Gearmotor | AC | 10 |
200 |
161 |
115/230 | 1/12 | N/A |
| 026Q607-0275 | Right Angle AC Gearmotor | AC | 6 |
200 |
275 |
115/230 | 1/12 | N/A |
| 026Q607-0525 | Right Angle AC Gearmotor | AC | 3 |
200 |
525 |
115/230 | 1/12 | N/A |
| 026Q607-1255 | Right Angle AC Gearmotor | AC | 2 |
200 |
1205 |
115/230 | 1/12 | N/A |
| 021Q607-0037 | Right Angle DC Gearmotor | DC | 90 |
34 |
37 |
90 | 1/10 | P158-200-9000 |
| 021Q607-0038 | Right Angle DC Gearmotor | DC | 45 |
56 |
37 |
90 | 1/20 | P158-200-9000 |
| 021Q607-0070 | Right Angle DC Gearmotor | DC | 24 |
102 |
70 |
90 | 1/20 | P158-200-9000 |
| 021Q607-0167 | Right Angle DC Gearmotor | DC | 10 |
228 |
161 |
90 | 1/20 | P158-200-9000 |
| 021Q607-0275 | Right Angle DC Gearmotor | DC | 6 |
177 |
275 |
90 | 1/20 | P158-200-9000 |
| 021Q607-0525 | Right Angle DC Gearmotor | DC | 3 |
250 |
525 |
90 | 1/20 | P158-200-9000 |
