Bison® 055 Series Inline Parallel Shaft Gearmotors

15-164 RPM · 12-67 in-lbs · 1/25 HP · AC option available

Motor Specifications
Enclosure: TENV
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor

Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Zytel High Speed and Steel
Duty Rating: Continuous

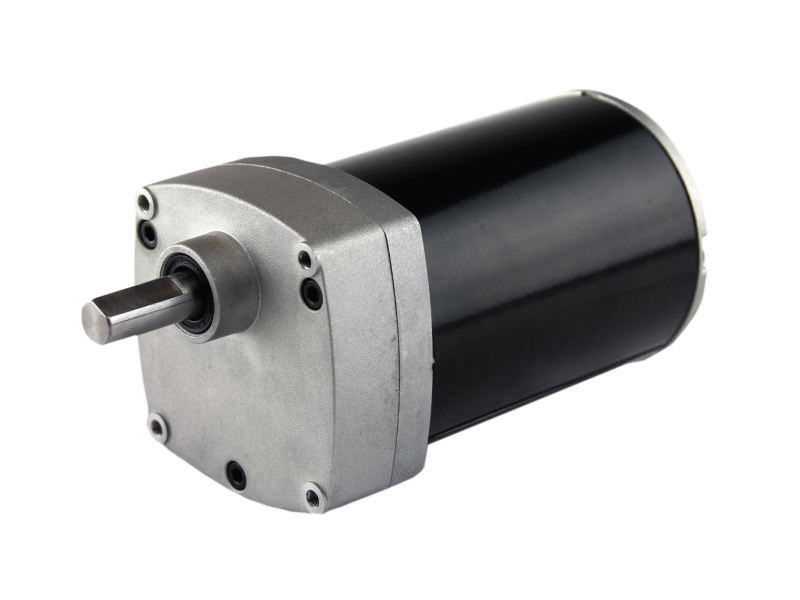

055 Series Bison Gearmotor
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
055 Series Bison Gearmotor

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
Compact Design Icon

Compact Design

Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs.)
 Gear Ratio :1
 Volt Input HP
 Replacement Brushes
016-055-1010 Inline Parallel Shaft AC Gearmotor
 AC 164 12
 10
 115
 1/25 N/A
016-055-1012 Inline Parallel Shaft AC Gearmotor
 AC 139
 14
 12
 115 1/25 N/A
016-055-1016 Inline Parallel Shaft AC Gearmotor
 AC 106
 20
 16
 115 1/25 N/A
016-055-1028 Inline Parallel Shaft AC Gearmotor
 AC 60
 30
 28
 115 1/25 N/A
016-055-1059 Inline Parallel Shaft AC Gearmotor
 AC 29
 50
 59
 115 1/25 N/A
016-055-1106 Inline Parallel Shaft AC Gearmotor
 AC 15
 67
 106
 115 1/25 N/A


Markets & Applications

Agricultural Equipment
Agricultural
Equipment
Construction Equipment Icon
Construction Equipment
Food Preparation Application Icon
Food & Beverage
Preparation
Material Handling Icon
Material Handling Equipment
packaging application icon
Packaging
Equipment
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
