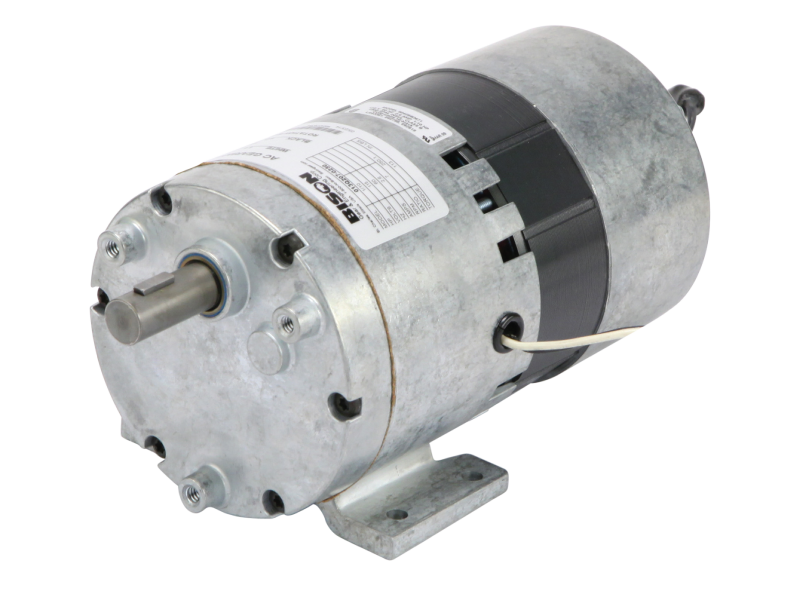

Find a productBison® 020 Series Inline Parallel Shaft Gearmotors
2-60 RPM · 42-113 in-lbs · 1/20 - 1/10 HP · AC option available
Motor Specifications
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Shaded Pole
Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Plastic High Speed and Hardened Steel
Duty Rating: Continuous
Motor Specifications
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Clockwise Facing Output Shaft
Motor Type: Shaded Pole
Gearhead Specifications
Finish: Unpainted
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Porous Bronze Sleeve
Lubrication: Grease
Housing: Precision Machined Die Cast Zinc
Gearing: Plastic High Speed and Hardened Steel
Duty Rating: Continuous
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Compact Design
Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Continuous Duty
Motors rated for continuous duty operation.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Input Power |
Speed (RPM) |
Torque (in-lbs.) |
Gear Ratio :1 |
Volt | Input HP |
Replacement Brushes |
|---|---|---|---|---|---|---|---|---|
| 013Q207-0027 | Inline Parallel Shaft AC Gearmotor |
AC | 60 | 59 | 27 | 115 |
1/10 | N/A |
| 013Q207-0052 | Inline Parallel Shaft AC Gearmotor |
AC | 30 | 113 | 52 | 115 | 1/10 | N/A |
| 013Q207-0128 | Inline Parallel Shaft AC Gearmotor |
AC | 13 | 113 | 128 | 115 | 1/10 | N/A |
| 013Q207-0250 | Inline Parallel Shaft AC Gearmotor |
AC | 7 | 113 | 250 | 115 | 1/10 | N/A |
| 013Q207-0750 | Inline Parallel Shaft AC Gearmotor |
AC | 2 | 113 |
750 | 115 | 1/10 | N/A |
| 013Q227-0027 | Inline Parallel Shaft AC Gearmotor |
AC | 60 |
59 | 27 | 115 | 1/10 | N/A |
| 013Q227-0052 | Inline Parallel Shaft AC Gearmotor |
AC | 30 |
113 | 52 | 115 | 1/10 | N/A |
| 013Q227-0128 | Inline Parallel Shaft AC Gearmotor |
AC | 13 | 113 |
128 |
115 | 1/10 | N/A |
| 013Q227-0250 | Inline Parallel Shaft AC Gearmotor |
AC | 7 | 113 | 250 | 115 | 1/10 | N/A |
| 013Q257-0052 | Inline Parallel Shaft AC Gearmotor |
AC | 30 | 42 | 52 | 115 | 1/20 | N/A |
| 013Q257-0128 | Inline Parallel Shaft AC Gearmotor |
AC | 13 | 113 | 128 | 115 | 1/20 | N/A |
| 013Q257-0250 | Inline Parallel Shaft AC Gearmotor |
AC | 7 | 113 | 250 | 115 | 1/20 | N/A |
| 013Q257-0750 | Inline Parallel Shaft AC Gearmotor |
AC | 2 | 113 | 750 | 115 | 1/20 | N/A |
