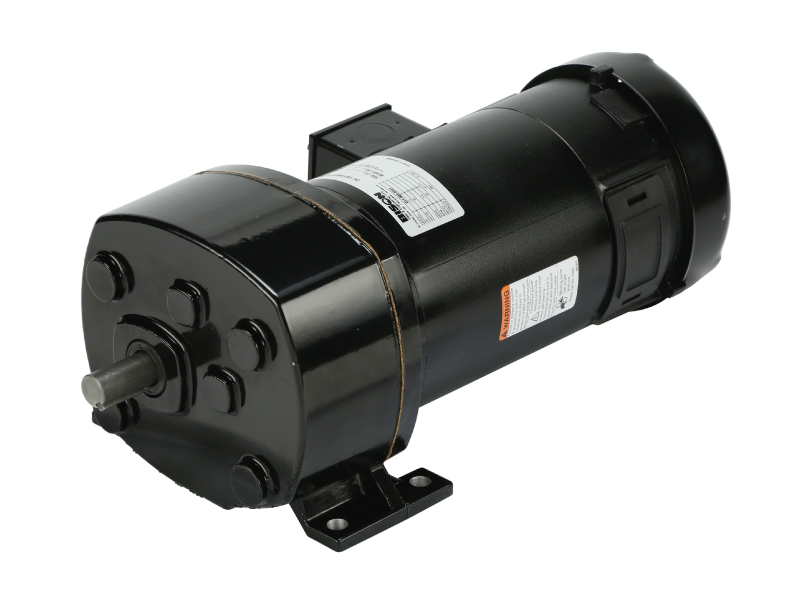

Find a productBison® 483 Series Inline Parallel Shaft Gearmotors
9-148 RPM · 101-1112 in-lbs · 1/4 - 1/2 HP · DC option available
Motor Specifications
Enclosure: 1/4 HP TENV, 1/2 HP TEFC
Insulation: Class B
Bearings: Ball
Rotation: Reversible
Motor Type: PMDC
Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle and Thrust Ball, Ball Bearing Outboard
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical, Balance Spur Steel.
Duty Rating: Continuous
Motor Specifications
Enclosure: 1/4 HP TENV, 1/2 HP TEFC
Insulation: Class B
Bearings: Ball
Rotation: Reversible
Motor Type: PMDC
Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle and Thrust Ball, Ball Bearing Outboard
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical, Balance Spur Steel.
Duty Rating: Continuous
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Continuous Duty
Motors rated for continuous duty operation.
High Torque Output
Optimized gear train provides high levels of torque for the most demanding applications.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Input Power |
Speed (RPM) |
Torque (in-lbs.) |
Gear Ratio :1 |
Volt | Input HP |
Replacement Brushes |
|---|---|---|---|---|---|---|---|---|
| 011-483-2012 | Inline Parallel Shaft DC Gearmotor |
DC | 144 |
202 |
12 |
90 | 1/2 | P158-406-0008 |
| 011-483-2018 | Inline Parallel Shaft DC Gearmotor | DC | 90 |
305 |
19 |
90 | 1/2 | P158-406-0008 |
| 011-483-2028 | Inline Parallel Shaft DC Gearmotor | DC | 60 |
464 |
28 |
90 | 1/2 | P158-406-0008 |
| 011-483-2041 | Inline Parallel Shaft DC Gearmotor | DC | 40 |
664 |
41 |
90 | 1/2 | P158-406-0008 |
| 011-483-2058 | Inline Parallel Shaft DC Gearmotor | DC | 34 |
822 |
50 |
90 | 1/2 | P158-406-0008 |
| 011-483-2087 | Inline Parallel Shaft DC Gearmotor | DC | 20 |
1112 |
87 |
90 | 1/2 | P158-406-0008 |
| 011-483-4012 | Inline Parallel Shaft DC Gearmotor | DC | 148 |
101 |
12 |
90 | 1/4 | P158-406-0008 |
| 011-483-4018 | Inline Parallel Shaft DC Gearmotor | DC | 91 |
152 |
19 |
90 | 1/4 | P158-406-0008 |
| 011-483-4028 | Inline Parallel Shaft DC Gearmotor | DC | 63 |
238 |
28 |
90 | 1/4 |
P158-406-0008 |
| 011-483-4041 | Inline Parallel Shaft DC Gearmotor | DC | 43 |
353 |
41 |
90 | 1/4 | P158-406-0008 |
| 011-483-4087 | Inline Parallel Shaft DC Gearmotor | DC | 20 |
727 |
87 |
90 | 1/4 | P158-406-0008 |
| 011-483-4131 | Inline Parallel Shaft DC Gearmotor | DC | 14 |
960 |
131 |
90 | 1/4 | P158-406-0008 |
| 011-483-4197 | Inline Parallel Shaft DC Gearmotor | DC | 9 |
1087 |
196 |
90 | 1/4 | P158-406-0008 |
