Bison® 385 Series Parallel Shaft Gear Reducer

NEMA 34 Input, 130 - 300 in-lbs Torque

Specifications
Gearing: Hardened Steel, AGMA Class 9
Housing: Precision Machined Die Cast Aluminum
Lubrication: Grease Filled, Sealed and Gasketed
Bearings: Needle and Thrust Ball
Shafts: Hardened Steel
Mounting: Face or Base, Any Angle
Input: 1/4" Diameter

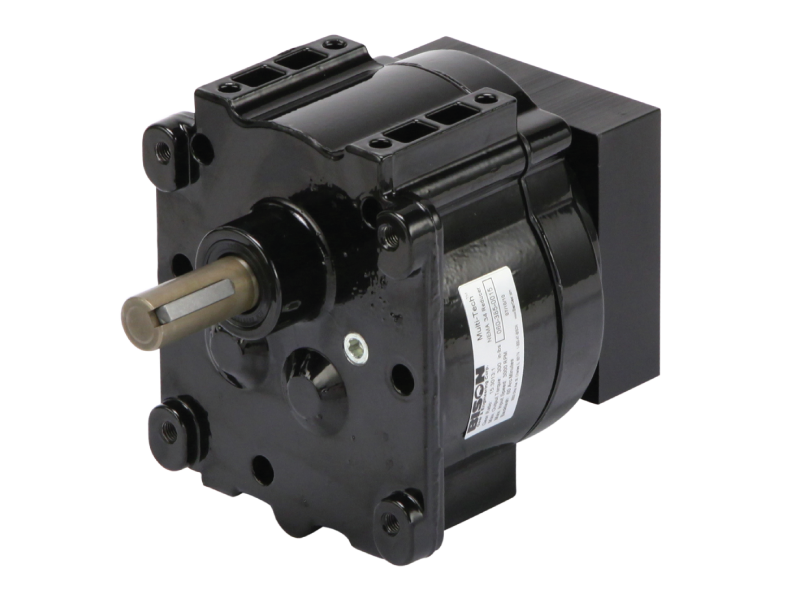

Bison 385 Series Gear Reducer
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
Bison 385 Series Gear Reducer

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
Compact Design Icon

Compact Design

Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Benefit Card
Protection Icon

Durable & Reliable

Rugged design withstands the harshest, most demanding operating environments.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-lbs)
 OHL Rated Input HP
 Gear Ratio
060-385-1015 Parallel Shaft Gear Reducer
 N/A N/A
 300
 N/A 1/4
 15.31
060-385-0005 Parallel Shaft Gear Reducer
 N/A N/A
 130
 N/A 1/4
 4.52
060-385-1005 Parallel Shaft Gear Reducer
 N/A N/A
 130
 N/A 1/4
 4.52
060-385-0011 Parallel Shaft Gear Reducer
 N/A N/A
 300
 N/A 1/4
 10.89
060-385-1011 Parallel Shaft Gear Reducer
 N/A N/A
 300
 N/A 1/4
 10.89

Markets & Applications

Agricultural Equipment
Agricultural
Equipment
food service application icon
Food & Beverage
Service
packaging application icon
Packaging
Equipment
Energy Market Icon
Energy
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
