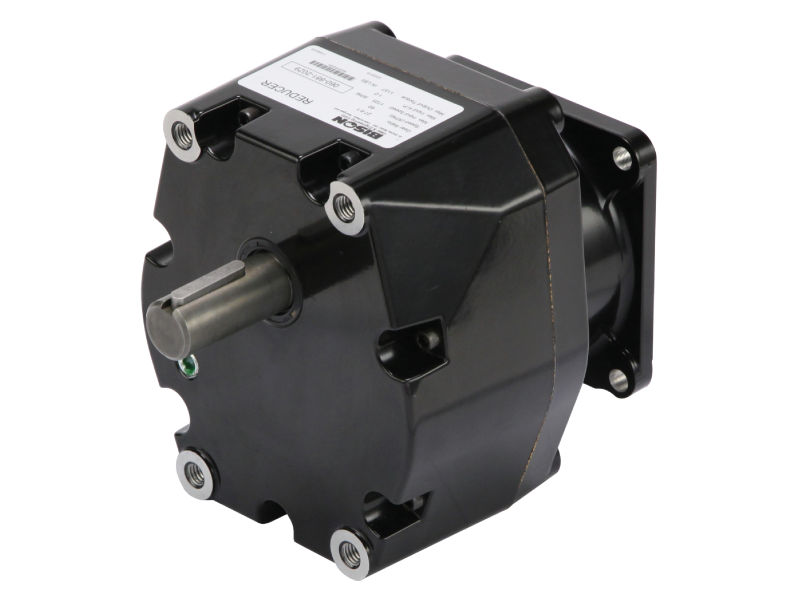

Find a productBison® 881 Series Parallel Shaft Gear Reducer
High Torque Gear Reducers, 190 - 1195 in-lbs Torque
Specifications
Gearing: Hardened Steel Helical and Spur, AGMA Class 9
Housing: Precision Machined Die Cast Aluminum
Lubrication: LIfetime Oil Bath, Sealed and Gasketed
Bearings: Ball and Needle
Shafts: Hardened Steel
Mounting: Face or Base, Any Angle
Specifications
Gearing: Hardened Steel Helical and Spur, AGMA Class 9
Housing: Precision Machined Die Cast Aluminum
Lubrication: LIfetime Oil Bath, Sealed and Gasketed
Bearings: Ball and Needle
Shafts: Hardened Steel
Mounting: Face or Base, Any Angle
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
High Torque Output
Optimized gear train provides high levels of torque for the most demanding applications.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Stage |
Speed (RPM) |
Torque (in-lbs) |
OHL | Rated Input HP |
Gear Ratio |
|---|---|---|---|---|---|---|---|
| 060-881-2143 | Parallel Shaft Gear Reducer |
3 |
12 |
992 |
1383 | 1/4 |
143 |
| 060-881-2012 | Parallel Shaft Gear Reducer |
2 |
146 |
692 |
573 |
1 1/2 |
12 |
| 060-881-2079 | Parallel Shaft Gear Reducer |
3 | 22 |
1195 |
1165 |
1/2 |
79 |
| 060-881-2007 | Parallel Shaft Gear Reducer |
2 | 253 |
399 |
506 |
1 1/2 |
7 |
| 060-881-2053 | Parallel Shaft Gear Reducer |
3 | 33 |
1100 |
942 |
3/4 |
53 |
| 060-881-2041 | Parallel Shaft Gear Reducer |
3 | 42 |
1139 |
858 |
3/4 |
41 |
| 060-881-2029 | Parallel Shaft Gear Reducer |
3 | 60 |
1137 |
838 |
1 |
28 |
| 060-881-2018 | Parallel Shaft Gear Reducer |
2 | 97 |
902 |
680 |
1 1/4 |
18 |
