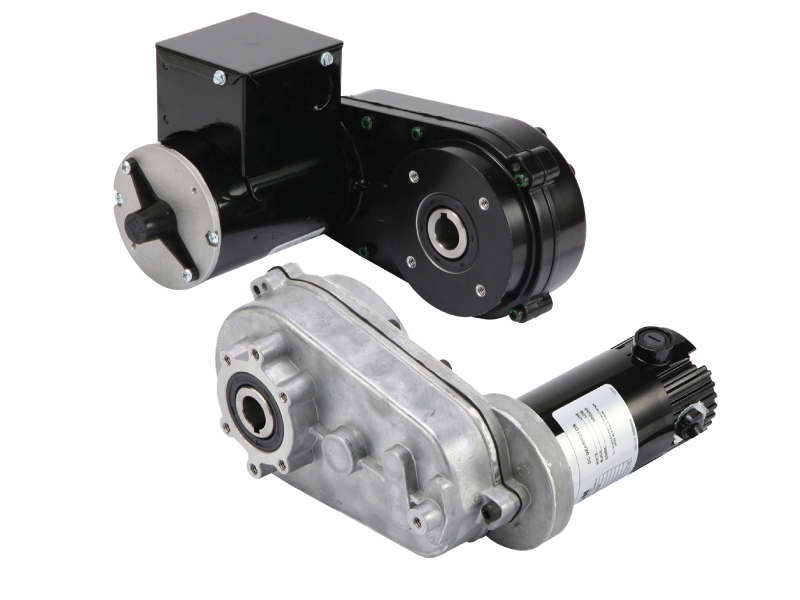

Find a productBison® 562 Series Offset Parallel Shaft Gearmotors
1-65 RPM · 66-1100 in-lbs · 1/20 - 1/8 HP · AC & DC options available
Motor Specifications
Enclosure: TENV
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC
Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Shaft Mount, Base Mount, or Face Mount Any Angle
Shafts: Hardened Steel
Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
Motor Specifications
Enclosure: TENV
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC
Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Shaft Mount, Base Mount, or Face Mount Any Angle
Shafts: Hardened Steel
Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Compact Design
Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
High Torque Output
Optimized gear train provides high levels of torque for the most demanding applications.
Continuous Duty
Motors rated for continuous duty operation.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Motor Type |
Speed (RPM) |
Torque (in-lbs.) |
Gear Ratio :1 |
Volt | Input HP |
Replacement Brushes |
|---|---|---|---|---|---|---|---|---|
| 016-562-0043 | Offset Parallel Shaft AC Gearmotor |
AC | 38 |
72 |
43 |
115 | 1/20 | N/A |
| 016-562-0084 |
Offset Parallel Shaft AC Gearmotor |
AC |
20 |
142 |
84 |
115 |
1/20 | N/A |
| 016-562-0121 |
Offset Parallel Shaft AC Gearmotor |
AC |
14 |
204 |
121 |
115 |
1/20 | N/A |
| 016-562-0151 |
Offset Parallel Shaft AC Gearmotor |
AC |
11 |
253 |
151 |
115 |
1/20 | N/A |
| 016-562-0285 |
Offset Parallel Shaft AC Gearmotor |
AC |
6 |
478 |
284 |
115 |
1/20 | N/A |
| 016-562-0401 |
Offset Parallel Shaft AC Gearmotor |
AC |
4 |
676 |
402 |
115 |
1/20 | N/A |
| 016-562-1397 |
Offset Parallel Shaft AC Gearmotor |
AC |
1 |
1100 |
1397 |
115 |
1/20 | N/A |
| 011-562-0043 |
Offset Parallel Shaft DC Gearmotor |
DC |
42 |
66 |
43 |
90 | 1/20 | P158-200-2600 |
| 011-562-0151 |
Offset Parallel Shaft DC Gearmotor |
DC |
12 |
232 |
151 |
90 |
1/20 | P158-200-2600 |
| 011-562-0285 |
Offset Parallel Shaft DC Gearmotor |
DC |
6 |
438 |
285 |
90 |
1/20 | P158-200-2600 |
| 011-562-0401 |
Offset Parallel Shaft DC Gearmotor |
DC |
5 |
620 |
402 |
90 |
1/20 | P158-200-2600 |
| 011-562-1397 |
Offset Parallel Shaft DC Gearmotor |
DC |
1 |
1100 |
1397 |
90 |
1/20 | P158-200-2600 |
| 011-562-2028 |
Offset Parallel Shaft DC Gearmotor |
DC |
65 |
107 |
28 |
90 | 1/8 | P158-200-9000 |
| 011-562-2055 |
Offset Parallel Shaft DC Gearmotor |
DC |
33 |
210 |
55 |
90 | 1/8 | P158-200-9000 |
| 011-562-2079 |
Offset Parallel Shaft DC Gearmotor |
DC |
23 |
303 |
79 |
90 | 1/8 | P158-200-9000 |
| 011-562-2111 |
Offset Parallel Shaft DC Gearmotor |
DC |
16 |
428 |
111 |
90 | 1/8 | P158-200-9000 |
| 011-562-2184 |
Offset Parallel Shaft DC Gearmotor |
DC |
10 |
709 |
184 |
90 | 1/8 | P158-200-9000 |
| 011-562-3055 |
Offset Parallel Shaft DC Gearmotor |
DC |
33 |
210 |
55 |
12 | 1/8 | P158-200-2001 |
| 011-562-3401 |
Offset Parallel Shaft DC Gearmotor |
DC |
5 |
620 |
402 |
12 | 1/20 | P158-200-2615 |
| 011-562-5055 |
Offset Parallel Shaft DC Gearmotor |
DC |
33 |
210 |
55 |
24 | 1/8 | P158-200-2001 |
| 011-562-5079 |
Offset Parallel Shaft DC Gearmotor |
DC |
23 |
303 |
79 |
24 | 1/8 | P158-200-2001 |
| 011-562-5111 |
Offset Parallel Shaft DC Gearmotor |
DC |
16 |
428 |
111 |
24 | 1/8 | P158-200-2001 |
| 011-562-5151 |
Offset Parallel Shaft DC Gearmotor |
DC |
12 |
232 |
151 |
24 | 1/20 | P158-200-2615 |
| 011-562-5284 |
Offset Parallel Shaft DC Gearmotor |
DC |
6 |
438 |
284 |
24 | 1/20 | P158-200-2615 |
| 011-562-5397 |
Offset Parallel Shaft DC Gearmotor |
DC |
1 |
1100 |
1397 |
24 | 1/20 | P158-200-2615 |
