Bison® NEMA 56C Series VFsync PMAC Motors

3/4 & 1 HP · NEMA 56C Mounting Flange · 26.5 - 40 in-lbs

Bison VFsync PMAC motors are the perfect solution for applications that require precise speed control
Designed with high-tech automated machines in mind, Bison's VFsync PMAC motors deliver the velocity control that engineers have previously only found in much more expensive servo motors.

63% Lighter & 56% Smaller than comparable 3-phase induction motors providing greater mounting versatility within thigh footprints.

Unleashing the Power of Permanent Magnets
  • Sinusoidal waveform style motor optimized to run on network driven variable frequency drives.
  • Robust sintered neodymium-iron-boron magnets fit securely in lamination pockets.
  • Internal permanent magnet style rotor built with electrical grade lamination steel.

    Rugged Construction and Convenient Features
  • Robust motor shaft with axial captured ball bearings and O-ring sealed enclosure.
  • Heavy duty inverter duty wire for reliable performance.
  • M17 power and feedback swivel connectors included on all motors for easy setup.
  • Quick connect cables available to link your motor and VFD.

    Bison VFsync PMAC motors require a variable frequency drive that is designed to run permanent magnet synchronous 230/460 volt three phase AC motors
    Each motor includes pre-determined parameters for easy programming on a compatible drive.

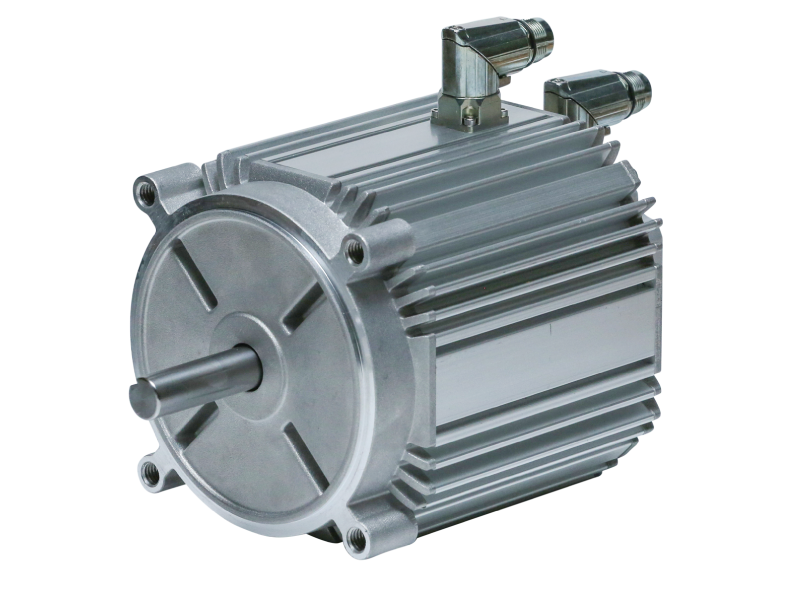

    • Bison NEMA56C Series VFsync PMAC Motor
    Features & Benefits
    GO TO FEATURES & BENEFITS
    Product Details
    GO TO PRODUCT DETAILS
    Markets & Applications
    GO TO MARKETS & APPLICATIONS
    Why Bison
    GO TO WHY BISON
    Bison NEMA56C Series VFsync PMAC Motor

    Features & Benefits

    Benefit Card
    Made in the USA

    Made in the USA

    Designed and manufactured in the United States.
    Benefit Card
    Compact Design Icon

    Compact Design

    Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
    Benefit Card
    High Efficiency Icon

    Energy Efficient

    Sinusoidal waveform style motor is designed to run on network driven variable frequency drives to optimize performance.
    Benefit Card
    Customization Icon

    Customizable

    Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

    Product Details

    If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

    Model Number Description Rated Power (HP)
    		 Speed (RPM)
    		 Torque (in-lbs.)
    		 Mounting Flange
    		 Enclosure Weight (lbs.)
    		 Length (in)
    		  Voltage
    05B-22-0308-B10-331 49 Frame VFsync PMAC Motor
    		 3/4 1800 26.5 NEMA56 C
    		 TENV 11.3 5.84
    		  115/230
    05B-22-0308-B10-332 49 Frame VFsync PMAC Motor 3/4 1800 26.5 NEMA56 C TEFC 12.3
    		 6.99
    		  115/230
    05B-22-0308-B10-33A 49 Frame VFsync PMAC Motor 3/4 1800 26.5 NEMA56 C TENV w/Encoder
    		 12.3
    		 7.16
    		  115/230
    05B-22-0308-D10-331 49 Frame VFsync PMAC Motor 3/4 1800 26.5 NEMA56 C TENV 11.5
    		 5.84
    		  460
    05B-22-0308-D10-332 49 Frame VFsync PMAC Motor 3/4 1800 26.5 NEMA56 C TEFC 12.3
    		 6.99
    		  460
    05B-22-0308-D10-33A 49 Frame VFsync PMAC Motor 3/4 1800 26.5 NEMA56 C TENV w/Encoder
    		 12.3
    		 7.16
    		  460
    05B-22-0411-B10-331 49 Frame VFsync PMAC Motor
    		 1 1800 40
    		 NEMA56 C TENV 15.5
    		 6.84
    		  115/230
    05B-22-0411-B10-332 49 Frame VFsync PMAC Motor 1 1800 40 NEMA56 C TEFC 16.3
    		 7.99
    		  115/230
    05B-22-0411-B10-33A 49 Frame VFsync PMAC Motor 1 1800 40 NEMA56 C TENV w/Encoder
    		 16.3
    		 8.16
    		  115/230
    05B-22-0411-D10-331 49 Frame VFsync PMAC Motor 1 1800 40 NEMA56 C TENV 15.5
    		 6.84
    		  460
    05B-22-0411-D10-332 49 Frame VFsync PMAC Motor 1 1800 40 NEMA56 C TEFC 16.3
    		 7.99
    		  460
    05B-22-0411-D10-33A 49 Frame VFsync PMAC Motor 1 1800 40 NEMA56 C TENV w/Encoder
    		 16.3
    		 8.16
    		  460


    Markets & Applications

    Conveyors
    Conveyors
    Food Packaging application icon
    Food & Beverage
    Packaging
    Food Processing application icon
    Food & Beverage
    Processing
    motion control market icon
    Motion
    Control
    packaging application icon
    Packaging
    Equipment
    And So Much More Icon
    And So
    Many More!
