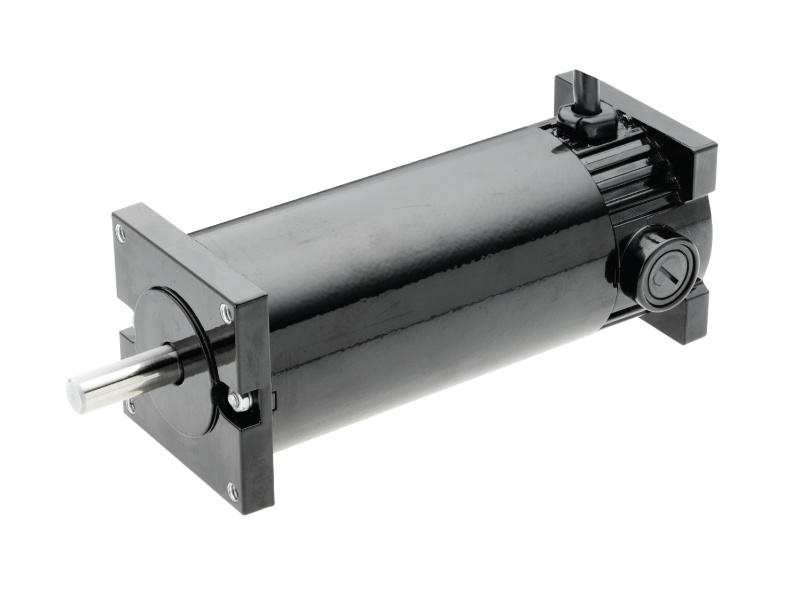

Find a productBison® 203 Series PMDC Motors
1/18, 1/14, 1/8, 1/7, 1/6, 1/4 & 1/3 HP · 12/24, 90 or 180 Volts
Motor Specifications
Armatures: Dynamically Balanced
Commutators: Tang-Type, Diamond Turned
Varnishing: Class H Polyester Trickle Varnishing
Magnets: Highest Grade Ceramic
Bearings: Double Shielded Ball
Finish: Gloss Black Powder Coat
Mounting: Base and Face
Shafts: Carbon Steel
Casting: Zinc Alloy
Insulation: Class F
Brushes: Oversized with Integral Shunts
Duty Rating: Continuous
Motor Specifications
Armatures: Dynamically Balanced
Commutators: Tang-Type, Diamond Turned
Varnishing: Class H Polyester Trickle Varnishing
Magnets: Highest Grade Ceramic
Bearings: Double Shielded Ball
Finish: Gloss Black Powder Coat
Mounting: Base and Face
Shafts: Carbon Steel
Casting: Zinc Alloy
Insulation: Class F
Brushes: Oversized with Integral Shunts
Duty Rating: Continuous
Features & Benefits
Made in the USA
Designed and manufactured in the United States.
Compact Design
Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Continuous Duty
Motors rated for continuous duty operation.
Customizable
Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
Product Details
If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".
| Model Number | Description | Input Power |
Speed (RPM) |
Torque (in-oz.) |
Volt | Input HP |
Replacement Brushes |
|---|---|---|---|---|---|---|---|
| 051-203-4025 | PMDC Motor |
DC | 1750/4200 |
41 |
12/24 | 1/14, 1/6 |
P158-200-2001 |
| 051-203-4035 | PMDC Motor | DC | 1750/3580 |
90 |
12/24 | 1/7, 1/4 |
P158-200-2001 |
| 051-203-4045 | PMDC Motor | DC | 1948/4124 |
93 |
12/24 | 1/6, 1/3 |
P158-200-2001 |
| 051-203-5025 | PMDC Motor | DC | 1800 |
31 |
90 | 1/18 |
P158-200-9000 |
| 051-203-5035 | PMDC Motor | DC | 1800 |
70 |
90 |
1/8 |
P158-200-9000 |
| 051-203-5045 | PMDC Motor | DC | 1800 |
90 |
90 |
1/6 | P158-200-9000 |
| 051-203-7025 | PMDC Motor | DC | 1800 |
93 |
180 |
1/6 |
P158-200-9000 |
