Bison® 206 Series PMDC Motors

1/53, 1/44, 1/27, 1/20, 1/18 & 1/9 HP · 12/24 & 90 Volts

Motor Specifications
Armatures: Dynamically Balanced
Commutators: Tang-Type, Diamond Turned
Varnishing: Class H Polyester Trickle Varnishing
Magnets: Highest Grade Ceramic
Bearings: Double Shielded Ball
Finish: Gloss Black Powder Coat
Mounting: Base and Face
Shafts: Carbon Steel
Casting: Zinc Alloy
Insulation: Class F
Brushes: Oversized with Integral Shunts
Duty Rating: Continuous

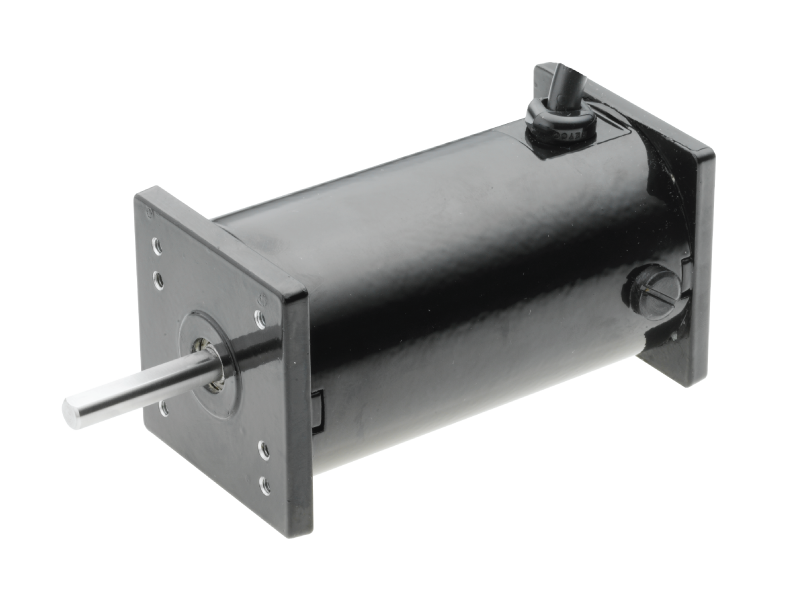

206 Series Bison PMDC Motor
Features & Benefits
GO TO FEATURES & BENEFITS
Product Details
GO TO PRODUCT DETAILS
Markets & Applications
GO TO MARKETS & APPLICATIONS
Why Bison
GO TO WHY BISON
206 Series Bison PMDC Motor

Features & Benefits

Benefit Card
Made in the USA

Made in the USA

Designed and manufactured in the United States.
Benefit Card
Compact Design Icon

Compact Design

Delivers optimal speed and torque in a small package. Perfect for applications that have limited space.
Benefit Card
continuous duty

Continuous Duty

Motors rated for continuous duty operation.
Benefit Card
Customization Icon

Customizable

Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.

Product Details

If the Product Detail content below is blank, please accept site cookies by clicking the green circle in the bottom-left corner of the page and selecting "Allow All".

Model Number Description Input Power
 Speed (RPM)
 Torque (in-oz.)
 Volt Input HP
 Replacement Brushes
051-206-4005 PMDC Motor
 DC 1870/4246
 13
 12/24 1/44, 1/18
 P158-200-2624
051-206-4015 PMDC Motor DC 1800/4000
 29
 12/24 1/20, 1/9
 P158-200-2624
051-206-5005 PMDC Motor DC 2475
 8
 90
 1/53
 P158-200-2690
051-206-5015 PMDC Motor DC 1810
 21
 90 1/27 P158-200-2690


Markets & Applications

Agricultural Equipment
Agricultural
Equipment
food service application icon
Food & Beverage
Service
packaging application icon
Packaging
Equipment
Energy Market Icon
Energy
And So Much More Icon
And So
Many More!

Why Bison

Design Expertise, Customizable Solutions & Integration Support


Bison® engineers understand technical challenges and can provide customers so much more than an off-the-shelf part. We are a true technology partner – oftentimes becoming an extension of our customers’ design teams. We help solve problems as well as offer customizable solutions and integration support.
